| | 2012 - 2015 |
| KL Kingwel R Series | | Compact Utility tractor |
|
| Transmission options |
| 16-speed |
| 24-speed power shift |
| 30-speed |
| Transmission |
| Gears | 16 forward and reverse
|
| Clutch | dry disc
|
| Four gears(1-4) in two ranges, with additional creeper range and shuttle shift. |

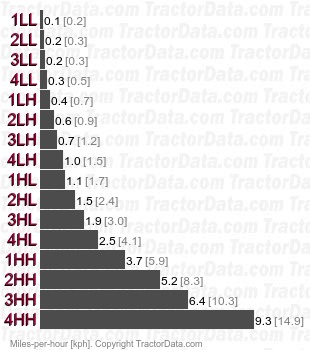

| Speeds |
|
| Transmission |
| Transmission | Glideshift
|
| Type | power shift
|
| Gears | 24 forward and 16 reverse
|
| Twelve hydraulically-shift gears (eight in reverse) in two ranges. |
| Transmission |
| Gears | 30 forward and 20 reverse
|
| Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range. |
