Kubota KL24R Transmission


No photo available
2012 - 2015
KL Kingwel R Series
Compact Utility tractor
Series map:
KL24R
KL27R
17.6kw
19.8kw
Transmission options
16-speed
16-speed power shift
24-speed
30-speed
Transmission
Gears16 forward and reverse
Clutchdry disc
Four gears(1-4) in two ranges, with additional creeper range and shuttle shift.
Speeds

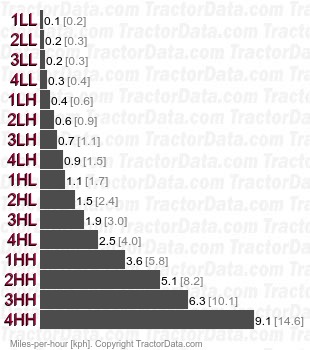

KL24R   speeds
Transmission
TransmissionGlideshift
Typepower shift
Gears16 forward and reverse
Eight hydraulically-shifted gears in two ranges.
Transmission
Gears24 forward and 16 reverse
Twelve hydraulically-shift gears (eight in reverse) in two ranges. Only available on the KL24R with cab.
Transmission
Gears30 forward and 20 reverse
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.
