Kubota KB19X-PC Transmission


Kubota KB19X-PC tractor photo
2009 - 2014
KB Kingbull Extra Series
Half-track Crawler tractor
Series map:
KB19X-PC
KB21X-PC
14.0kw
15.4kw
Transmission options
9-speed
36-speed power shift
Transmission
Gears9 forward and reverse
Clutchdry disc
Three gears (1-3) in three ranges with shuttle shift.
Speeds

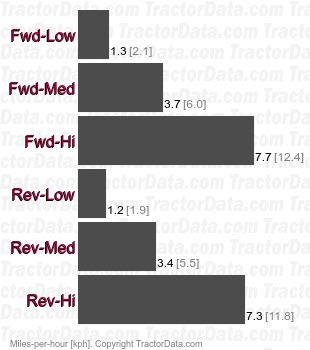

KB19X-PC   speeds
Transmission
TransmissionGlideshift
Typepower shift
Gears36 forward and 24 reverse
Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.
Speeds

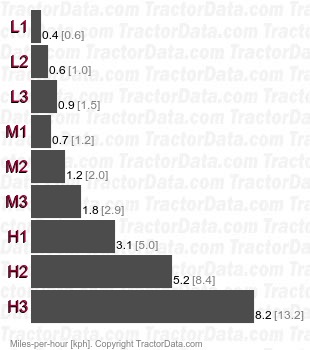

KB19X-PC Glideshift power shift speeds
