Kubota KB21X Transmission


Kubota KB21X tractor photo
2009 - 2014
KB Kingbull Extra Series
Sub-Compact Utility tractor
Series map:
KB19X
KB21X
KB23X
14.0kw
15.4kw
16.5kw
Transmission options
9-speed
36-speed power shift
Transmission
Gears9 forward and reverse
Clutchdry disc
Three gears (1-3) in three ranges with shuttle shift.
Speeds
KB21X   speeds
Transmission
TransmissionGlideshift
Typepower shift
Gears36 forward and 24 reverse
Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.

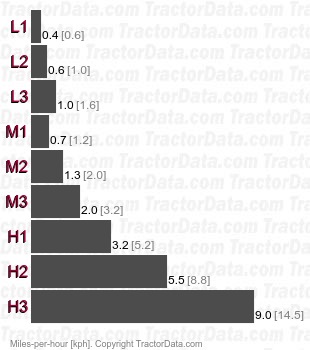

Speeds
KB21X Glideshift power shift speeds
