| | 2009 - 2014 |
| KB Kingbull Extra Series | | Sub-Compact Utility tractor |
|
Series map:
KB17X
KB19X
12.5kw
14.0kw
| Transmission options |
| 9-speed |
| 36-speed power shift |
| Transmission |
| Gears | 9 forward and reverse
|
| Clutch | dry disc
|
| Three gears (1-3) in three ranges with shuttle shift. |

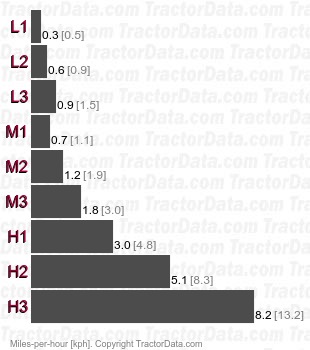

| Speeds |
|
| Transmission |
| Transmission | Glideshift
|
| Type | power shift
|
| Gears | 36 forward and 24 reverse
|
| Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges. |

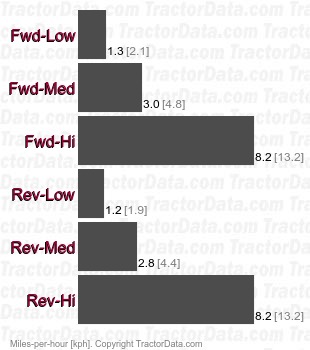

| Speeds |
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on October 27, 2017 |
