| | 2012 - 2015 |
| FT Granforce Series | | Compact Utility tractor |
|
Series map:
FT23
FT25
FT28
16.9kw
18.4kw
20.6kw
| Transmission options |
| 12-speed |
| 48-speed power shift |
| Transmission |
| Gears | 12 forward and reverse
|
| Clutch | dry disc
|
| Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift. |

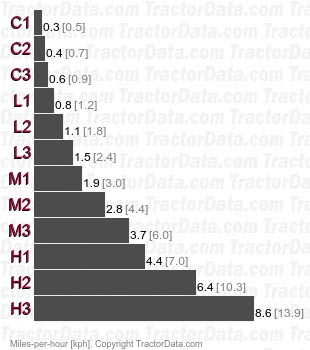

| Speeds |
|
| Transmission |
| Transmission | Glideshift
|
| Type | power shift
|
| Gears | 48 forward and 30 reverse
|
| Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges. |

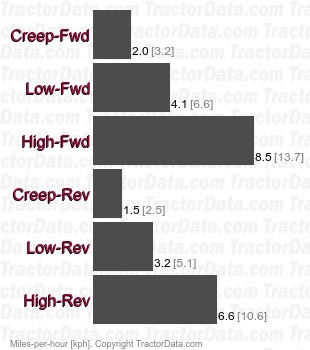

| Speeds |
|
