| 2000 - 2004 |
KT Kingeye Series | Compact Utility tractor |
|
Series map:
KT22
KT24
KT27
16.2kw
17.7kw
19.9kw
Transmission options |
12-speed |
48-speed power shift |
Transmission |
Gears | 12 forward and reverse
|
Clutch | dry disc
|
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift. |

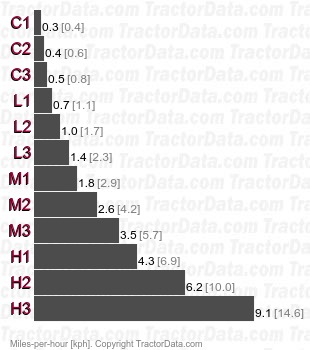

Speeds |
|
Transmission |
Transmission | Glideshift
|
Type | power shift
|
Gears | 48 forward and 30 reverse
|
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges. |

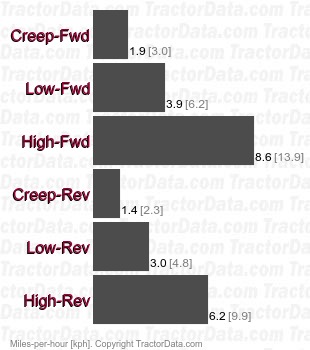

Speeds |
|
