Kubota M135G Transmission


Kubota M135G tractor photo
2014 -
Globe Series
Utility tractor
Series map:
M125G
M135G
91.9kw
99.3kw
Transmission options
24-speed power shift
32-speed creeper
Transmission
Typepower shift
Gears24 forward and reverse
Clutchhydraulic wet disc
Eight power-shift gears in three ranges with shuttle.
Speeds

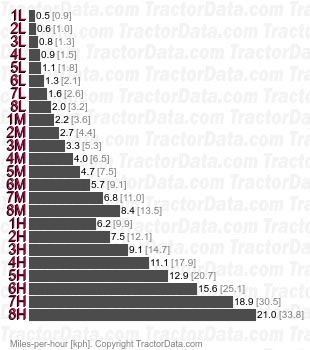

M135G  power shift speeds
Transmission
Typecreeper
Gears32 forward and reverse
Optional creeper adds an additional 8-speed range to the standard transmission.
Speeds

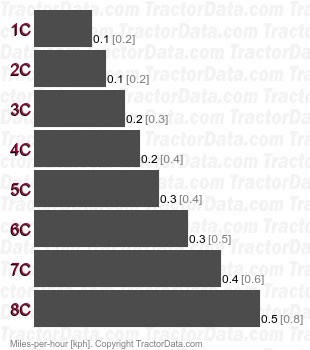

M135G  creeper speeds
