Kubota M115A Transmission


No photo available
2009 - 2013
Grandom A Series
Utility tractor
Series map:
M110A
M115A
M125A
80.9kw
84.6kw
91.9kw
Transmission options
16-speed power shift
24-speed creeper
Transmission
Typepower shift
Gears16 forward and reverse
Clutchhydraulic wet disc
Eight power-shift gears in two ranges with shuttle.
Speeds

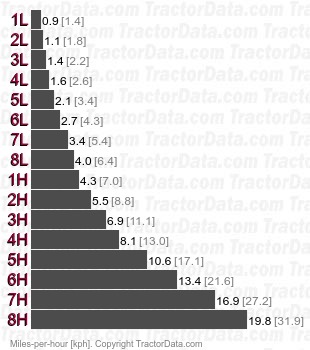

M115A  power shift speeds
Transmission
Typecreeper
Gears24 forward and reverse
Optional creeper adds an additional 8-speed range to the standard transmission.
Speeds

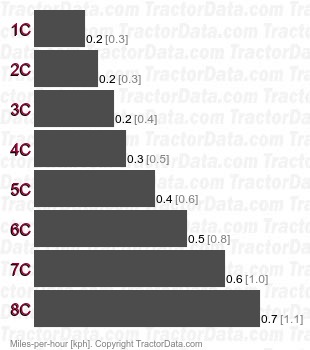

M115A  creeper speeds
