Kubota M95D Transmission


No photo available
2005 - 2008
Grandom Series
Utility tractor
Series map:
M85D
M95D
M105D
62.5kw
69.9kw
77.2kw
Transmission options
16-speed power shift
24-speed creeper
Transmission
Typepower shift
Gears16 forward and reverse
Clutchhydraulic wet disc
Eight power-shift gears in two ranges with shuttle.
Speeds

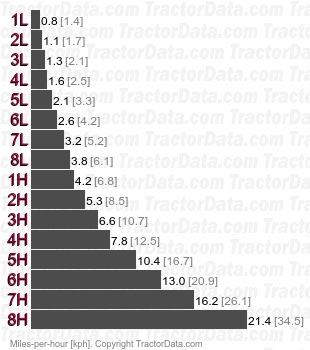

M95D  power shift speeds
Transmission
Typecreeper
Gears24 forward and reverse
Optional creeper adds an additional 8-speed range to the standard transmission.
Speeds

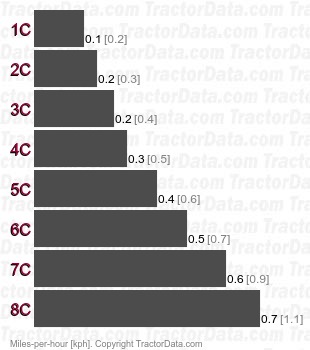

M95D  creeper speeds
