| | 2005 - 2008 |
| Grandom Series | | Utility tractor |
|
Series map:
M85D
M95D
62.5kw
69.9kw
| Transmission options |
| 16-speed power shift |
| 24-speed creeper |
| Transmission |
| Type | power shift
|
| Gears | 16 forward and reverse
|
| Clutch | hydraulic wet disc
|
| Eight power-shift gears in two ranges with shuttle. |

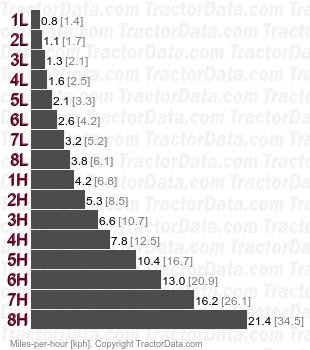

| Speeds |
|
| Transmission |
| Type | creeper
|
| Gears | 24 forward and reverse
|
| Optional creeper adds an additional 8-speed range to the standard transmission. |

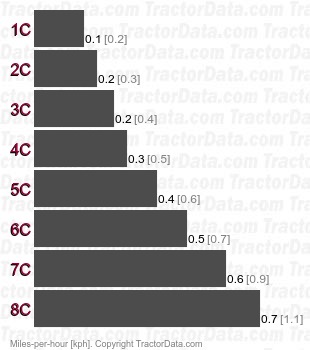

| Speeds |
|
