| | 2002 - 2004 |
| Grandom Series | | Utility tractor |
|
Series map:
M90
M100
M115
66.2kw
73.6kw
84.5kw
| Transmission options |
| 16-speed synchromesh |
| 16-speed power shift |
| 24-speed creeper |
| Transmission |
| Type | synchromesh
|
| Gears | 16 forward and reverse
|
| Clutch | dry disc
|
| Four gears (1-4) in two ranges with additional high/low shift. |

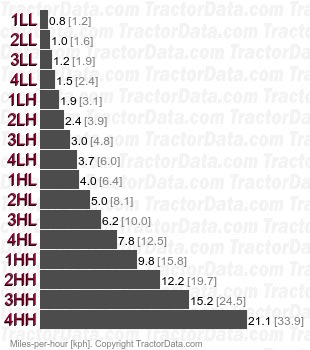

| Speeds |
|
| Transmission |
| Type | power shift
|
| Gears | 16 forward and reverse
|
| Clutch | hydraulic wet disc
|
| Eight power-shift gears in two ranges with shuttle. |
| Speeds |
|
| Transmission |
| Type | creeper
|
| Gears | 24 forward and reverse
|
| 1C:2C:3C:4C:5C:6C:7C:8C;:0.13:0.17:0.22:0.27:0.34:0.43:0.53:0.68 |
