| | 1995 - 2001 |
| MD Series | | Utility tractor |
|
Series map:
MD107
MD117
78.7kw
84.6kw
| Transmission options |
| 16-speed |
| 24-speed creeper |
| 16-speed partial power shift |
| Transmission |
| Gears | 16 forward and reverse
|
| Four gears (1-4) in two ranges (low/high) with additional two-range shift. |

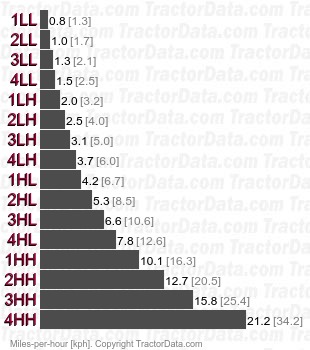

| Speeds |
|
| Transmission |
| Type | creeper
|
| Gears | 24 forward and reverse
|
| Optional creeper range added to basic transmission. |
| Speeds |
|
| Transmission |
| Type | partial power shift
|
| Gears | 16 forward and reverse
|
| Eight gears in two ranges. Optional creeper range available. |
