| | 1999 - 2005 |
| KL Series | | Compact Utility tractor |
|
Series map:
KL46
KL50
33.8kw
36.8kw
| Transmission options |
| 20-speed |
| 30-speed |
| Transmission |
| Gears | 20 forward and reverse
|
| Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed). |

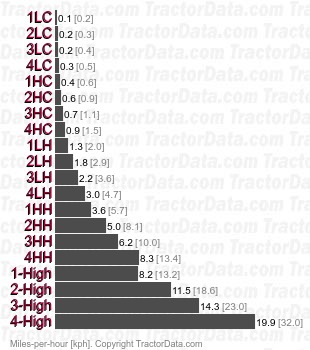

| Speeds |
|
| Transmission |
| Gears | 30 forward and 20 reverse
|
| Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available. |
