Kubota KL36 Transmission


No photo available
1999 - 2005
KL Series
Compact Utility tractor
Series map:
KL33
KL36
KL43
24.3kw
26.5kw
31.6kw
Transmission options
16-speed
24-speed
Transmission
Gears16 forward and reverse
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.

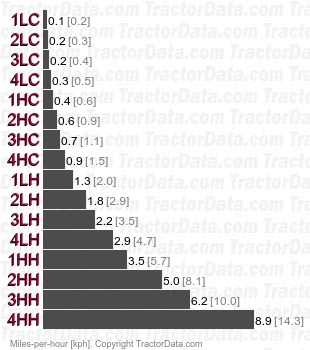

Speeds
KL36   speeds
Transmission
Gears24 forward and 16 reverse
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse.
