| | 1999 - 2005 |
| KL Series | | Compact Utility tractor |
|
Series map:
KL23
KL25
KL27
16.9kw
18.4kw
19.9kw
| Transmission options |
| 16-speed |
| 24-speed |
| Transmission |
| Gears | 16 forward and reverse
|
| Four gears (1-4) in two ranges with additional creeper range and shuttle shift. |

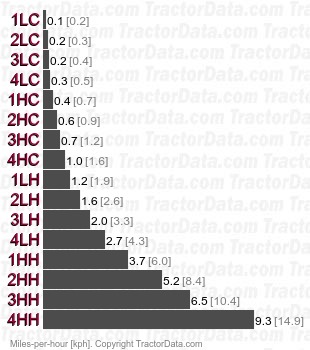

| Speeds |
|
| Transmission |
| Gears | 16 forward and reverse
|
| Eight gears in two ranges (creeper and high) with shuttle shift. |
| Transmission |
| Gears | 24 forward and 16 reverse
|
| Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin. |
