Kubota GL241

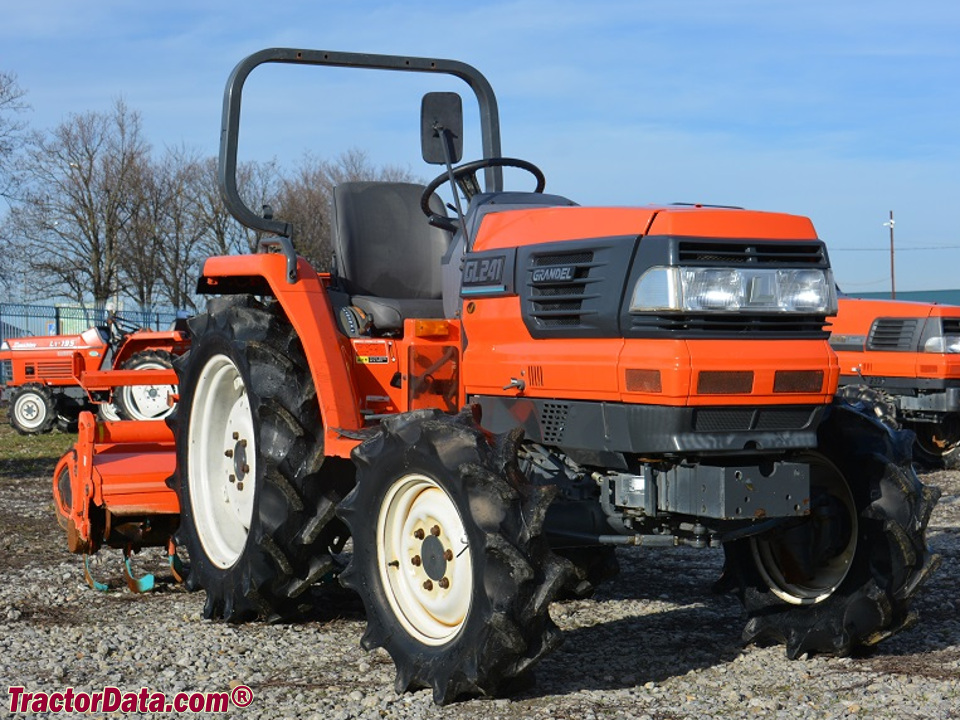

Kubota GL241 tractor photo
1996 - 2001
GL Series
Compact Utility tractor
Series map:
GL221
GL241
GL261
16.9kw
18.4kw
19.9kw
Production
ManufacturerKubota
Compact Utility tractor
Kubota GL241 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank7.1 gal
26.9 L
Engine details ...
Kubota GL241 Transmissions
16-speed gear
16-speed power shift
Transmission details ...
Kubota GL241 Power
Engine24.7 hp
18.4 kW
PTO (claimed)23.7 hp
17.7 kW
Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post ROPS. Cab optional.
Hydraulics
Pump flow6.1 gpm
23.1 lpm
Tractor hitch
Rear TypeJIS1
Rear lift1841 lbs
835 kg
Power Take-off (PTO)
Rear PTO Type540 (1.375)
Engine RPM544@2600
 770@2600
 944@2600
 1250@2600
 -770@2600
Dimensions & Tires
ROPS Wheelbase61 inches
154 cm
Cab Wheelbase62.4 inches
158 cm
Weight2436 to 2877 pounds
Front tire6-14
Rear tire9.5-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
GL241 references literature
GL (T0270-1920-8) published in 1996
