Kubota GL221

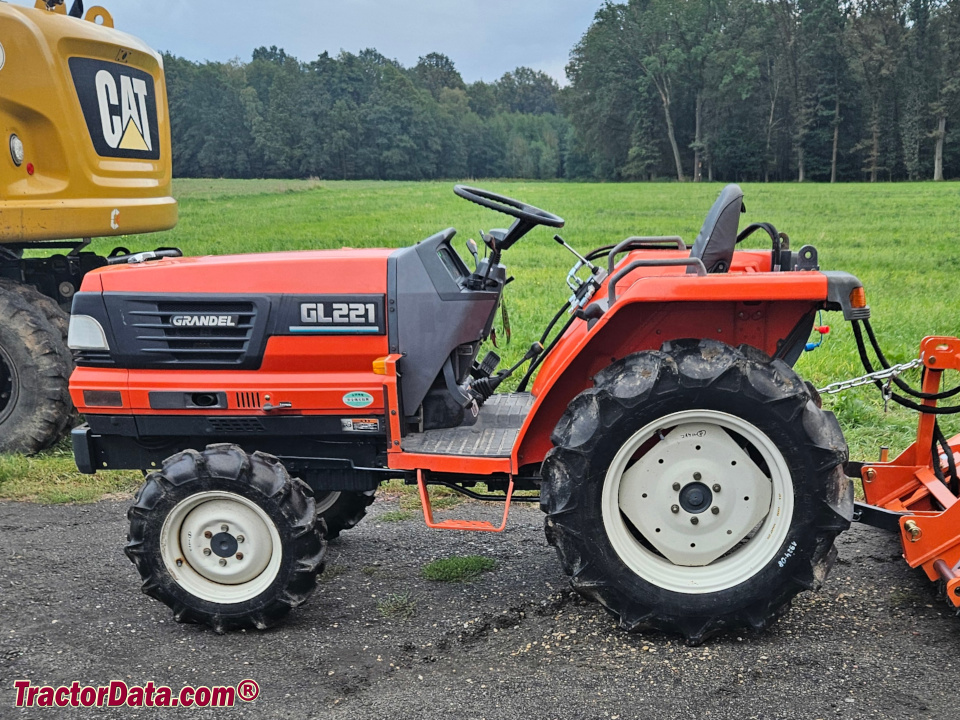

Kubota GL221 tractor photo
1996 - 2001
GL Series
Compact Utility tractor
Series map:
GL201
GL221
GL241
15.4kw
16.9kw
18.4kw
Production
ManufacturerKubota
Compact Utility tractor
Kubota GL221 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank7.1 gal
26.9 L
Engine details ...
Kubota GL221 Transmissions
16-speed gear
16-speed power shift
Transmission details ...
Kubota GL221 Power
Engine22.7 hp
16.9 kW
Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post ROPS. Cab optional.
Tractor hitch
Rear TypeJIS1
Power Take-off (PTO)
Rear PTO Type540 (1.375)
Engine RPM546@2500
 772@2500
 947@2500
 1254@2500
 -772@2500
Dimensions & Tires
ROPS Wheelbase61 inches
154 cm
Cab Wheelbase62.4 inches
158 cm
Weight2414 to 2822 pounds
Front tire6-14
Rear tire9.5-22
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
GL221 references literature
GL (T0270-1920-8) published in 1996
