Nuffield Mini 9/16
| | 1965 - 1968 |
| Utility tractor |
|
Series map:
Mini 9/16
11.9kw
| Production |
| Manufacturer | Nuffield
|
| Utility tractor |
| Nuffield Mini 9/16 Power |
| Engine | 16 hp
11.9 kW
|
| Mechanical |
| Two-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Manual steering |
| Open operator station. |
| Hydraulics |
| Pump flow | 3 gpm
11.4 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 1000 lbs
453 kg
|
| Power Take-off (PTO) |
| Rear PTO Type | 540/1000
|
| Mini 9/16 Serial Number Location |
 |

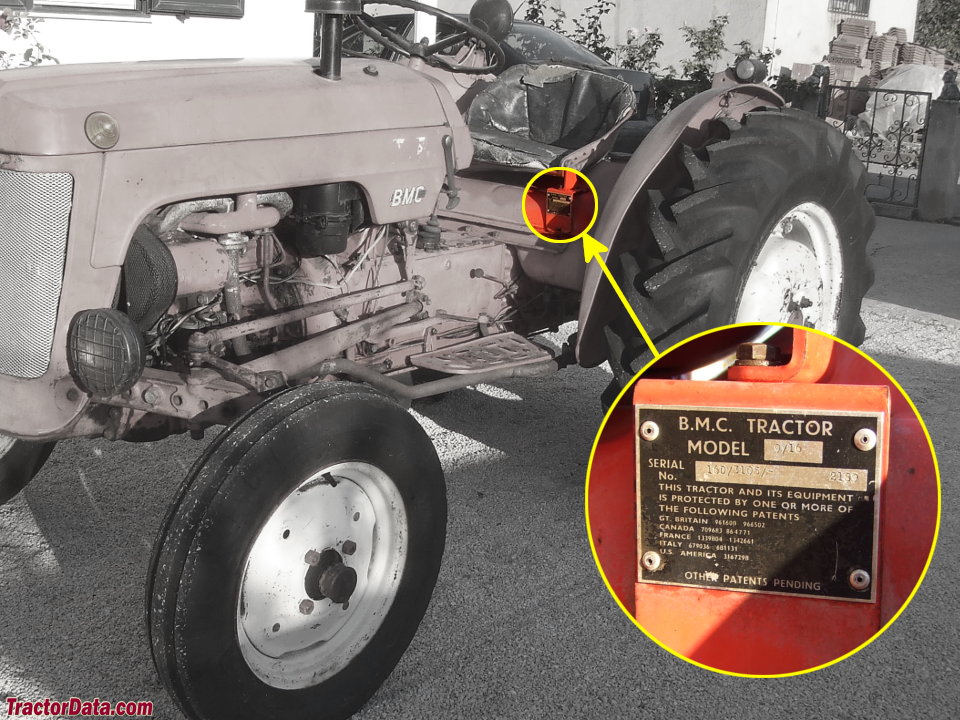

| Serial number plate in front of, and below, the seat of the BMC 9/16. |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 2, 2019 |
