Allis Chalmers Styled WC
| | 1933 - 1948 |
|
| Row-Crop tractor |
|
Series map:
WC
30.0hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Allis Chalmers
|
| Row-Crop tractor |
| Built in West Allis, Wisconsin, USA |
| Total built | 178,202
|
| | 411 (Speed Maintainer)
|
| | 3,751 (Speed Patrol)
|
| Original price | $1,341 (1947)
|
| The WC was styled in 1938, starting at serial number WC74330. The styled WC featured a rounded radiator and larger tires. |
| Variants |
| WC Speed Maintainer | 1938-1941
|
| WC Speed Patrol | 1945-1950
|
| WF | Standard front version (wide)
|
| Allis Chalmers WC Power |
| Drawbar (claimed) | 18 hp
13.4 kW
|
| Belt (claimed) | 27 hp
20.1 kW
|
| Plows | 2
|
| Drawbar (tested) | 22.29 hp
16.6 kW
|
| Belt (tested) | 29.93 hp
22.3 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Differential hand-operated mechanical drum brakes |
| Open operator station with steel pan seat. |
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Rear PTO Type | 535
|
| WC Serial Number Location |
 |

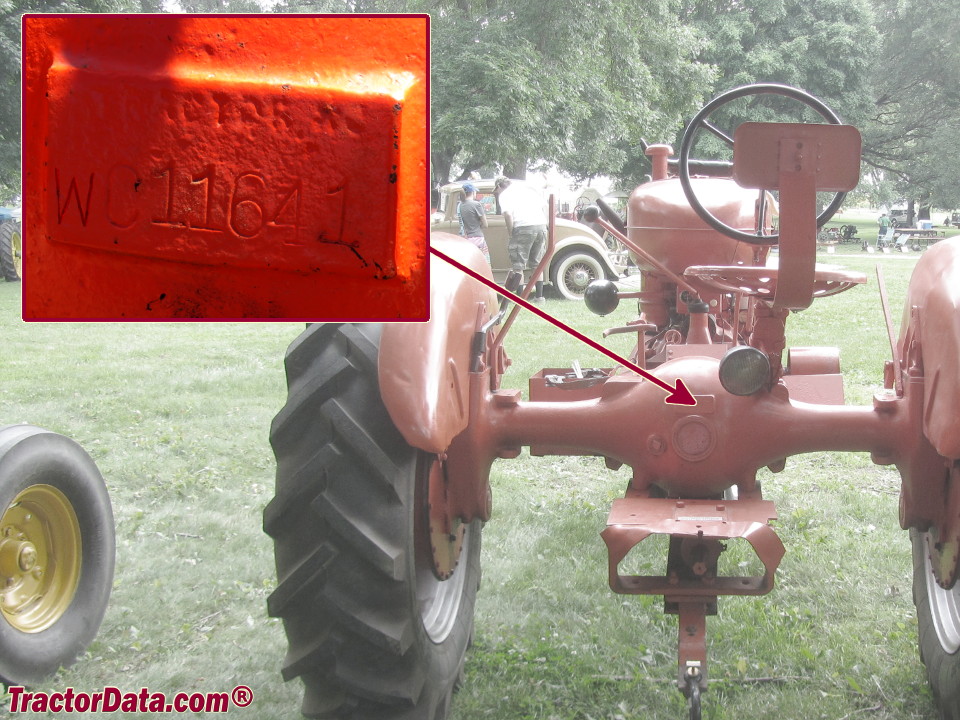

| Serial number is on the rear of the Allis-Chalmers WC, stamped into the differential housing. |
| WC Serial Numbers |
| 1933 | 1
|
| 1934 | 29
|
| 1935 | 3127
|
| 1936 | 13870
|
| 1937 | 31784
|
| 1938 | 60790
|
| 1939 | 75216
|
| 1940 | 91534
|
| 1941 | 103517
|
| 1942 | 114534
|
| 1943 | 123171
|
| 1944 | 127642
|
| 1945 | 134624
|
| 1946 | 148091
|
| 1947 | 152845
|
| 1948 | 170174
|
| Final | 178202
|
FAQ: How to read a serial number table.
|
| Belt Pulley |
| Diameter | 9 inches
22 cm
|
| Width | 6.5 inches
16 cm
|
| RPM | 1170
|
| Electrical |
| Charging system | generator
|
| Battery volts | 6
|
| Battery AH | 95
|
