Allis Chalmers Styled WC Engine


Allis Chalmers Styled WC tractor photo
1933 - 1948
Model year
Row-Crop tractor
Series map:
WC
30.0hp*
*Estimated engine power for comparison only.
Engine options
Allis-Chalmers 3.3L 4-cyl gasoline
Allis-Chalmers 3.3L 4-cyl distillate
Engine Detail
Allis-Chalmers
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement201 ci
3.3 L
Bore/Stroke4.00x4.00 inches
102 x 102 mm
Fuel use2.861 gal/hour
10.8 l/hour
Air cleaneroil bath
Compression5.0:1
Rated RPM1300
Firing order1-2-4-3
Starter typeelectric
Coolant capacity14 qts
13.2 L
Sparkplug gap0.030 inches
0.762 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches*Hot
0.254 mm
Exhaust valve clearance0.010 inches*Hot
0.254 mm
Engine Oil

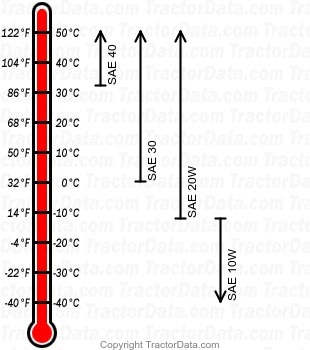

Styled WC gasoline engine oil chart
Oil capacity6 qts
5.7 L
Engine Detail
Allis-Chalmers
distillate
4-cylinder
liquid-cooled vertical I-head
Low-compression engine designed to operate on fuels rated at 30 octane or higher.
Displacement201 ci
3.3 L
Bore/Stroke4.00x4.00 inches
102 x 102 mm
Fuel use2.119 gal/hour
8.0 l/hour
Air cleaneroil bath
Compression4.2:1
Rated RPM1300
Firing order1-2-4-3
Starter typeelectric
Coolant capacity14 qts
13.2 L
Sparkplug gap0.030 inches
0.762 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches (hot)
0.254 mm
Exhaust valve clearance0.010 inches (hot)
0.254 mm
Engine Oil
Styled WC distillate engine oil chart
Oil capacity6 qts
5.7 L
