Tractors > SAME > Explorer 70C

SAME Explorer 70C Transmission



SAME Explorer 70C tractor photo
Explorer Series
Agricultural Crawler tractor
Series map:
Explorer 70C
Explorer 80C
52.2kw
59.7kw
Transmission
Typeshuttle
Gears8 forward and reverse
Clutch279.4mm mechanical organic disc
Four gears (1-4) in two ranges (low/high) with shuttle.
Speeds
Reverse speeds are 15% faster than forward.

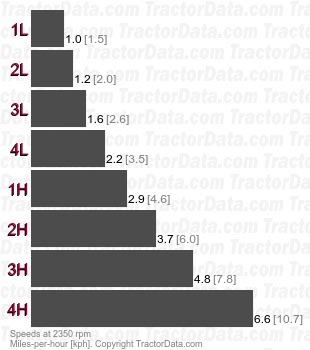

Explorer 70C shuttle speeds
