SAME Vigneron 75
|
|
| Production | |
| Manufacturer | SAME |
| Orchard/Vineyard tractor | |
| SAME Vigneron 75 Engine | |
| SAME 4.0L 4-cyl diesel | |
| Fuel tank | 12.7 gal 48.1 L |
 Engine details ... | |
| SAME Vigneron 75 Transmissions | |
| 12-speed partially synchronized | |
| 16-speed creeper | |
 Transmission details ... |
| SAME Vigneron 75 Power | |
| Engine | 75 hp 55.9 kW |
| PTO (claimed) | 67 hp 50.0 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | mechanical front and rear |
| Power steering | |
| Mechanical wet disc brakes | |
| Two-post mid-mount folding ROPS. | |

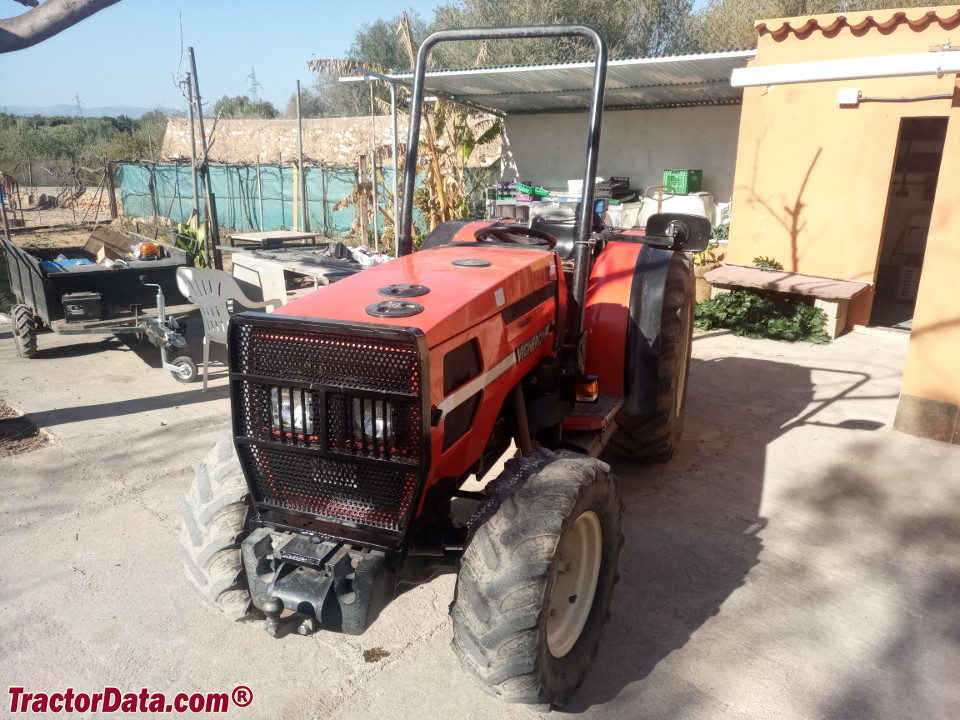

| Photos | |
 | |
 SAME Vigneron 75 photos... | |
| Hydraulics | |
| Pressure | 2650 psi 182.7 bar |
| Valves | 1 to 3 |
| Pump flow | 9.2 gpm 34.8 lpm |
| 16 gpmOptOptional 60.6 lpm | |
| Tractor hitch | |
| Rear Type | II/I |
| Rear lift (at ends) | 5511 lbs 2499 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | dry disc |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| Wheelbase | 79.5 inches 201 cm |
| Weight | 4520 lbs 2050 kg |
| Front tire | 9.0/75x16 |
| Rear tire | 13.6R24 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 55 |
| Battery volts | 12 |
| Battery AH | 100 |
| References | |
 | |
| SAME Tractors that are true specialists published by AGCO |
