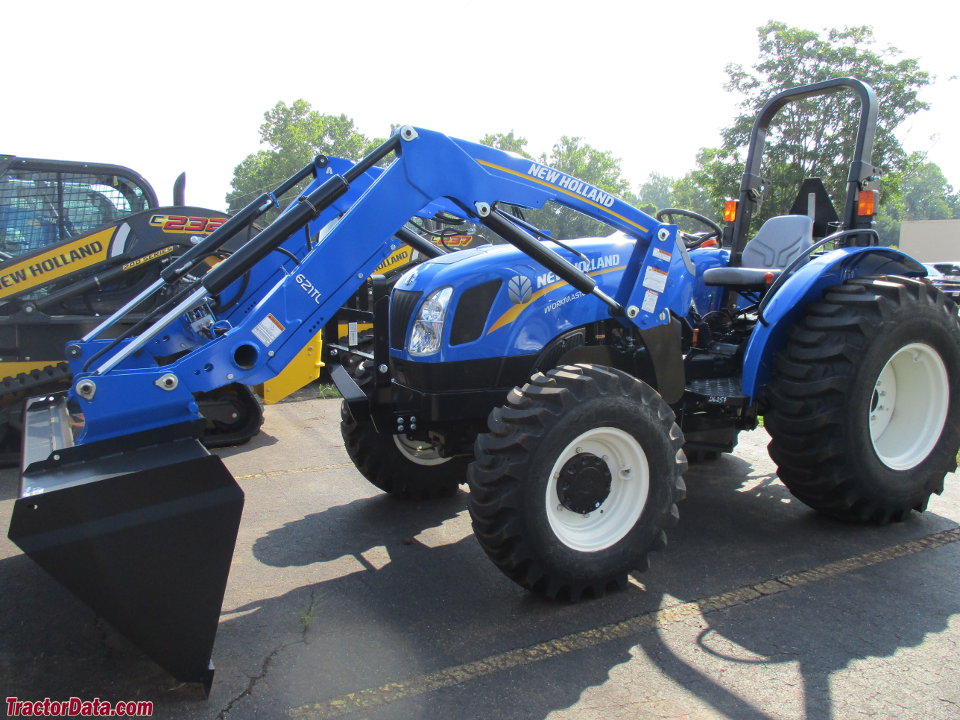

New Holland Workmaster 50
| | 2015 - |
| Workmaster Series | | Utility tractor |
|
| Production |
| Manufacturer | New Holland (a part of CNH)
|
| Utility tractor |
| Original price was $23,658 in 2017 |
| New Holland Workmaster 50 Power |
| Engine | 53 hp
39.5 kW
|
| PTO (claimed) | 45 hp
33.6 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Wet disc brakes |
| Two-post folding ROPS. |
| Hydraulics |
| Type | open center
|
| Valves | 1 or 2
|
| Pump flow | 12 gpm
45.4 lpm
|
| Total flow | 17.5 gpm
66.2 lpm
|
| Steering flow | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position and draft control
|
| Rear lift (at ends) | 3307 lbs
1500 kg
|
| Rear lift (at 24"/610mm) | 2701 lbs
1225 kg
|
| Rear Arms | telescoping draft links
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | mechanical
|
| Rear PTO Type | 540
|
| | 540/540E OptOptional
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 75
|
| Battery volts | 12
|
| References |
 |
| Under 60-HP Tractors published in 2017, by New Holland |
| Workmaster Series Tractors published in 2015, by New Holland |
