John Deere 5115R Engine


John Deere 5115R tractor photo
2017 -
5R Series
Utility tractor
Series map:
5100R
5115R
5125R
74.6kw
85.8kw
93.2kw
Engine Detail
John Deere PowerTech PWX
wastegate turbocharged diesel
4-cylinder
liquid-cooled
Displacement276.4 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsStage IIIB
Emission controlexhaust-gas recirculation, diesel oxidation catalyst, and diesel particulate filter
Rated Power (gross)115 hp
85.8 kW
Maximum Power (gross)125 hp
93.2 kW
Fuel systemelectronic high-pressure common rail
Rated RPM2200
Operating RPM1650-2200
Torque370.3 lb-ft
502.1 Nm
Torque RPM1500
Starterelectric
Starter volts12

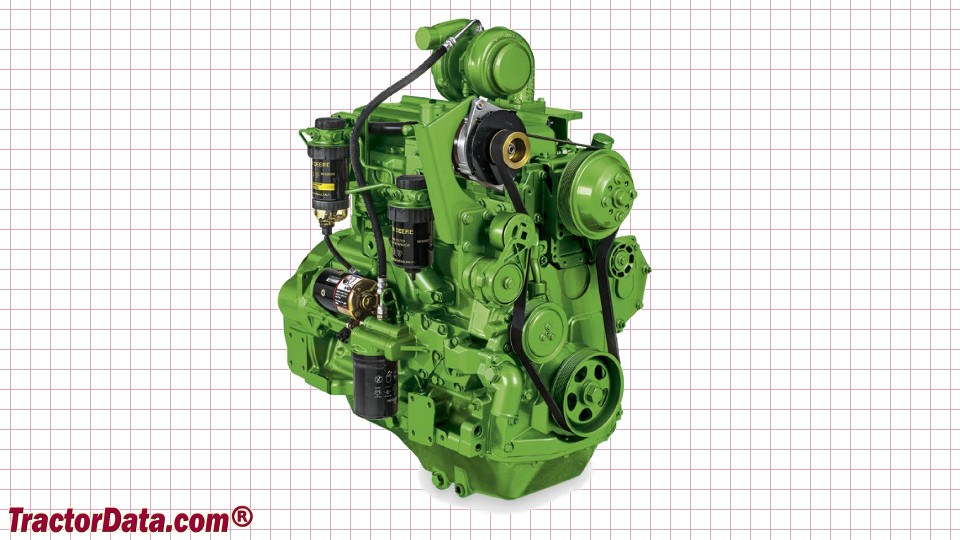

John Deere 5115R Engine
John Deere 5115R engine image
