John Deere 5090R Engine


John Deere 5090R tractor photo
2009 - 2025
Model year
5R Series
Utility tractor
Series map:
5090R
5100R
67.1kw
74.6kw
Engine Detail
John Deere PowerTech PWX
wastegate turbocharged diesel
4-cylinder
liquid-cooled
Displacement276.4 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsStage IIIB
Emission controlexhaust-gas recirculation, diesel oxidation catalyst, and diesel particulate filter
Rated Power (gross)90 hp
67.1 kW
Maximum Power (gross)100 hp
74.6 kW
Fuel systemelectronic high-pressure common rail
Rated RPM2200
Operating RPM1650-2200
Torque289.9 lb-ft
393.1 Nm
Torque RPM1500
Starterelectric
Starter volts12

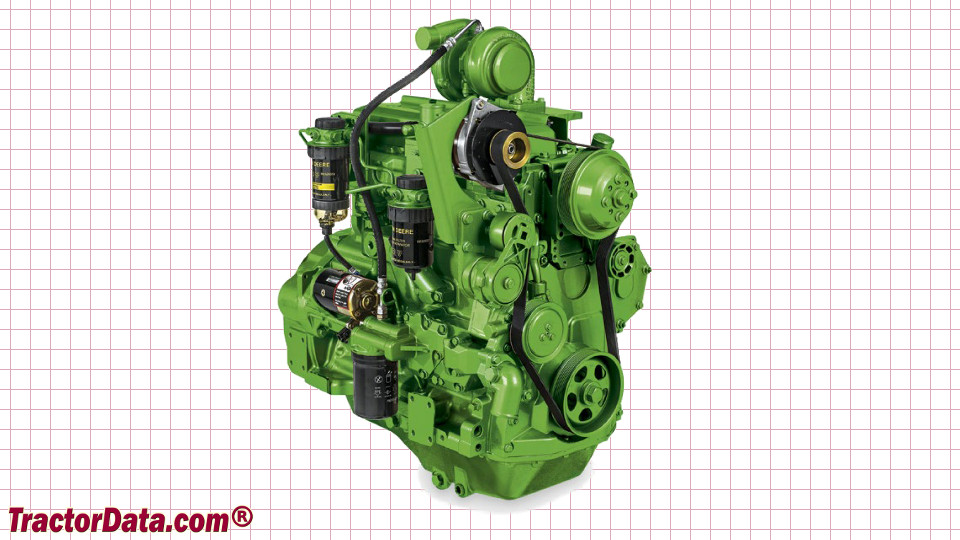

John Deere 5090R Engine
John Deere 5090R engine image
