Tractors > CaseIH > Maxxum 150

CaseIH Maxxum 150 Engine



CaseIH Maxxum 150 tractor photo
2015 -
Maxxum Series
Utility tractor
Series map:
Maxxum 145
Maxxum 150
145.0hp
145.0hp
Engine Detail
FPT
turbocharged air-to-air intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement411 ci
6.7 L
Bore/Stroke4.095x5.20 inches
104 x 132 mm
EmissionsTier 4
Emission controlselective catalytic reduction with diesel exhaust fluid
Rated Power (gross)145 hp
108.1 kW
Maximum Power (gross)175 hp
130.5 kW
Fuel systemelectronic high-pressure common rail
Cooling systemviscous fan
Pre-heatinggrid heater
 block heater OptOptional
Rated RPM2200
Starterelectric
Starter volts12
Oil capacity16 qts
15.1 L

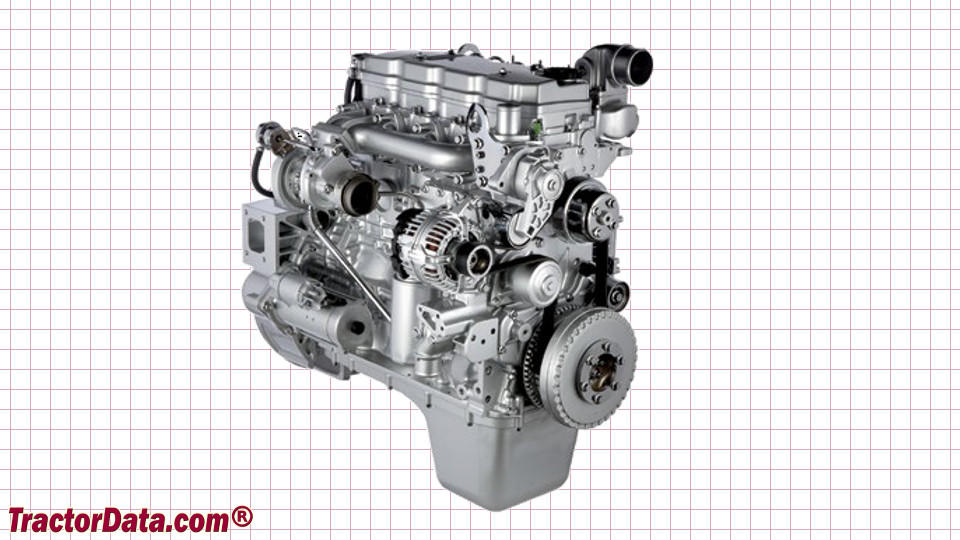

CaseIH Maxxum 150 Engine
CaseIH Maxxum 150 engine image
