| | 1962 - 1964 |
|
| 4-Digit Series | | Row-Crop tractor |
|
Series map:
1600
1800
66.7hp*
85.6hp*
*Estimated engine power for comparison only.
| Transmission options |
| 6-speed gear |
| 12-speed partial power shift |
| Transmission |
| Type | gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 32 qts
30.3 L
|
| Transmission |
| Transmission | Hydra-Power
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Six speeds forward and two reverse. A control knob enables a power shift between direct drive and the Hydra-Power range. |

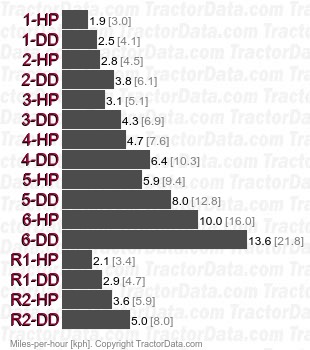

| Speeds |
|
