| | 1997 - 2001 |
| 4200 Series | | Utility tractor |
|
Series map:
4255
4260
4270
70.8kw
74.6kw
82.0kw
| Transmission options |
| 12-speed mechanical shuttle |
| 18-speed two-speed power shift |
| 12-speed power shuttle |
| 24-speed power shuttle |
| Transmission |
| Type | mechanical shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | 330 cerametallic disc
|
| Four gears (1-4) in three ranges (L/M/H) with mechanical shuttle. |
| Speeds |
| With 16.9R34 rear tires. |
|
| Transmission |

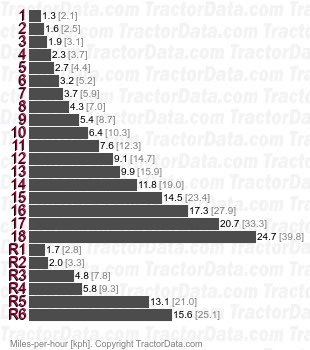

| Transmission | Speedshift
|
| Type | two-speed power shift
|
| Gears | 18 forward and 6 reverse
|
| Clutch | 330 cerametallic disc
|
| Three gears (1-3) plus reverse (R) in three ranges (L/M/H) with push-button Speedshift power shift. |
| Speeds |
| With 16.9R34 rear tires. |
|

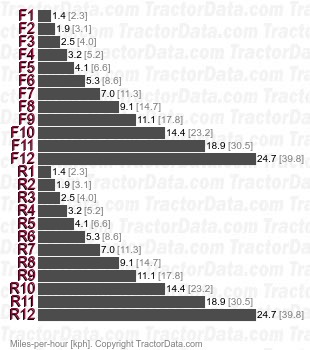

| Transmission |
| Type | power shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | electro-hydraulic wet disc
|
| Four gears (1-4) in three ranges (L/M/H) with power shuttle. |
| Speeds |
| With 16.9R34 rear tires. |
|

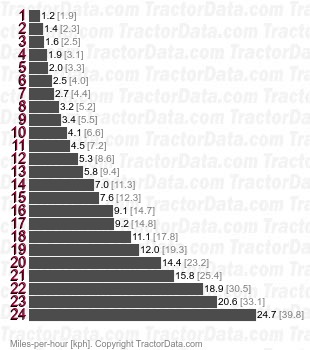

| Transmission |
| Type | power shuttle
|
| Gears | 24 forward and reverse
|
| Clutch | electro-hydraulic wet disc
|
| Four gears (1-4) in three ranges (L/M/H) with power shuttle and push-button two-speed power shift. |
| Speeds |
| With 16.9R34 rear tires. |
|
