New Holland T8.350
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Row-Crop tractor | |
| Built in Racine, Wisconsin, USA | |
| Original price was $279,219 in 2016 with powershift | |
| Variants | |
| Magnum 280 | similar CaseIH model |
| New Holland T8.350 Engine | |
| FPT 8.7L 6-cyl diesel | |
| CVT Fuel tank | 163 gal 617.0 L |
| FPS Fuel tank | 179 gal 677.5 L |
| Exhaust fluid (DEF) | 26 gal 98.4 L |
 Engine details ... | |
| New Holland T8.350 Transmissions | |
| 18-speed full power shift | |
| continuously variable transmission (CVT) | |
| 23-speed power shift creeper | |
 Transmission details ... |
| New Holland T8.350 Power | |
| Engine (gross) | 280 hp 208.8 kW |
| Engine (max) | 351 hp 261.7 kW |
| PTO (claimed) | 235 hp 175.2 kW |
| Drawbar (tested) | 213.10 hp 158.9 kW |
| PTO (tested) | 296.56 hp 221.1 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Power steering | |
| Wet disc brakes | |
| Cab standard with air-conditioning. Comfort Ride cab suspension optional. Intellisteer ready | |
| Photos | |
 | |

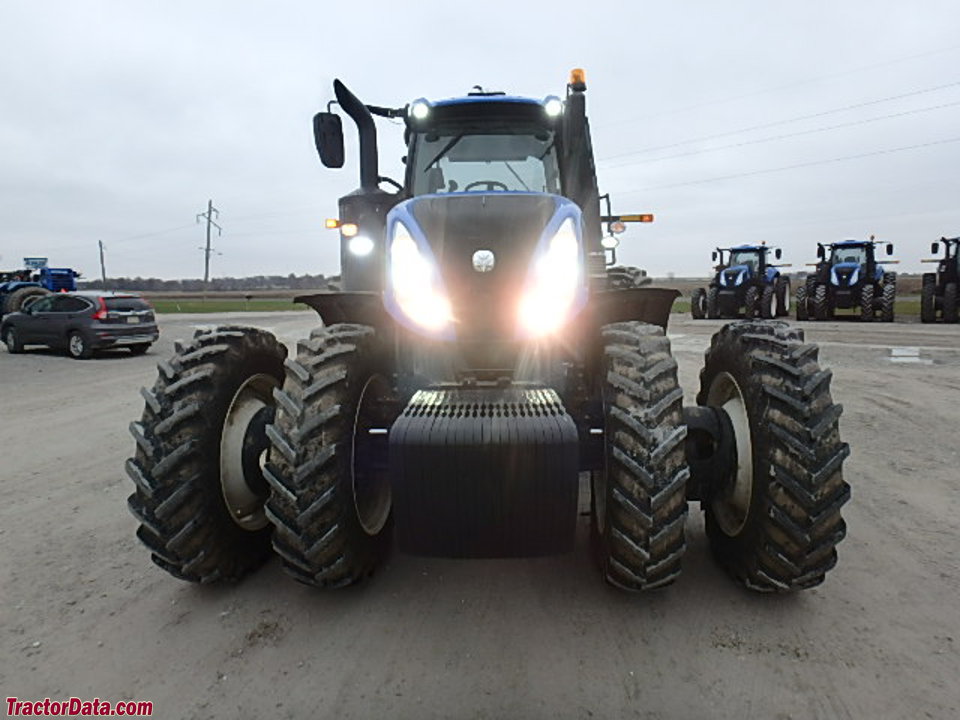

 New Holland T8.350 photos... | |
| Hydraulics | |
| Type | closed center pressure-flow compensating (PFC) |
| Valves | 4 to 5 |
| Pump flow | 44 gpm 166.5 lpm |
| 75 gpm*Optional, MegaFlow rate. 283.9 lpm | |
| Tractor hitch | |
| Rear Type | III/IIIN |
| IVN/III | |
| Control | electronic lower-link draft sensing |
| Rear lift | 12900 lbs*With 4-inch rear axle and 43-inch link arms. 5851 kg |
| 14900 lbs*With 4-inch rear axle and 38-inch link arms. 6758 kg | |
| 15900 lbs*With 4.5-inch rear axle and 43-inch link arms. 7212 kg | |
| 17900 lbs*With 4.5-inch rear axle and 38-inch link arms. 8119 kg | |
| Drawbar | Cat. 3 |
| Cat. 4 OptOptional | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| 540/1000 (1.375)OptOptional | |
| Engine RPM | 540@1800 |
| 1000@1800 | |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 (1.375) |
| Dimensions & Tires | |
| FPS Wheelbase | 136 inches 345 cm |
| CVT Wheelbase | 138 inches 350 cm |
| Weight | 22377 lbs 10150 kg |
| Front tire | 420/85R34 |
| Rear tire | 480/80R50 |
 Full dimensions and tires ... | |
| New Holland T8.350 attachments | |
| front-end loader | |
 Attachment details ... |
| T8.350 Serial Numbers | |
| 2015 | ZERxxxxxx |
| 2016 | ZFRxxxxxx |
| 2017 | ZGRxxxxxx |
| 2018 | ZHRxxxxxx |
| 2019 | ZJRxxxxxx |
| 2020 | ZKRxxxxxx |
| 2021 | ZLRxxxxxx |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 2 |
| Battery volts | 12 |
| References | |
 | |
| Genesis T8 Series Tractors published in 2014, by New Holland | |
| Genesis T8 Series Tractors published in 2015, by New Holland |
