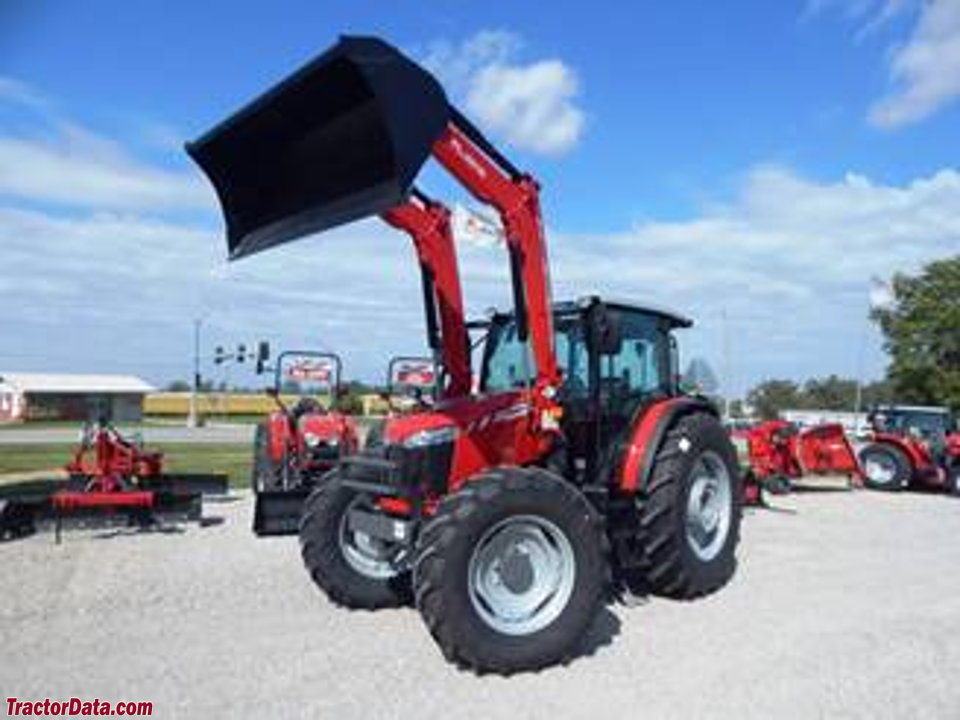

Massey Ferguson 6713
| | 2017 - |
| 6700 Series | | Utility tractor |
|
Series map:
6712
6713
115.0hp
125.0hp
| Production |
| Manufacturer | Massey Ferguson (a part of AGCO)
|
| Utility tractor |
| Massey Ferguson 6713 Power |
| Engine | 125 hp
93.2 kW
|
| PTO (claimed) | 110 hp
82.0 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | internal planetary
|
| Differential lock | electro-hydraulic rear
|
| Power steering |
| Wet disc brakes |
| Two-post folding ROPS. Cab optional. |
| Hydraulics |
| Type | open center
|
| Valves | 2 or 3
|
| Pump flow | 15.1 gpm
57.2 lpm
|
| | 25.9 gpm*Optional, with additional 41L auxiliary pump.
98.0 lpm
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/540E/1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 80
|
| Battery volts | 12
|
| References |
 |
| MF 5700 and MF 6700 12x12 Power Shuttle and Dyna-4 Global Series published in 2021, by Massey Ferguson |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on February 24, 2023 |
