Tractors > Challenger > MT525E

Challenger MT525E Tests



Challenger MT525E tractor photo
2015 - 2020
MT500E Series
Row-Crop tractor
Series map:
MT515E
MT525E
MT535E
130.0hp
140.0hp
150.0hp
Tractor Tests
OECD 2995: diesel AutoPower IV 4WD
OECD 2991: diesel AutoPower VI 4WD
OECD 2988: diesel TechStar CVT 4WD
OCED Tractor Test 2995

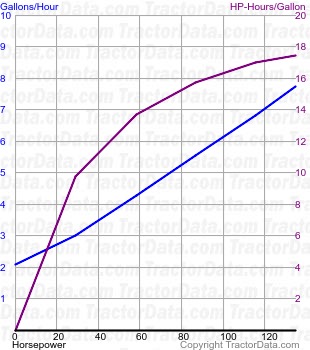

MT525E fuel use from test 1066
OCED Tractor Test 2995
Diesel AutoPower IV 4WD
June 2016 - July 2016,
Link: OCED Tractor Test 2995 file
PTO performance
Max power142 hp
105.9 kW
Fuel use8.0 gal/hour
30.3 l/hour
Power at rated engine speed136.5 hp
101.8 kW
Fuel use8.0 gal/hour
30.3 l/hour
Power at rated PTO speed138.1 hp
103.0 kW
Fuel use8.0 gal/hour
30.3 l/hour
Drawbar performance
Max power121.2 hp
90.4 kW
Fuel use8.0 gal/hour
30.3 l/hour
Gear 3A used for power test.
Max pull13330 lbs
6046 kg
Gear 2A used for pull test.
OCED Tractor Test 2991

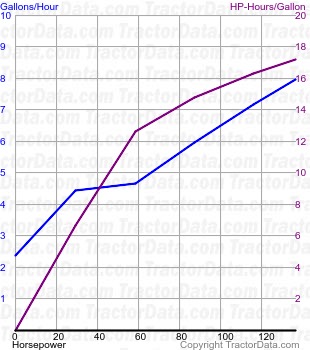

MT525E fuel use from test 1067
OCED Tractor Test 2991
Diesel AutoPower VI 4WD
May 2016 - August 2016,
Link: OCED Tractor Test 2991 file
PTO performance
Max power140.1 hp
104.5 kW
Fuel use7.7 gal/hour
29.1 l/hour
Power at rated engine speed134.6 hp
100.4 kW
Fuel use7.7 gal/hour
29.1 l/hour
Power at rated PTO speed135.6 hp
101.1 kW
Fuel use7.7 gal/hour
29.1 l/hour
Drawbar performance
Max power116.3 hp
86.7 kW
Fuel use7.8 gal/hour
29.5 l/hour
Gear 3B used for power test.
Max pull13375 lbs
6066 kg
Gear 1E used for pull test.
OCED Tractor Test 2988

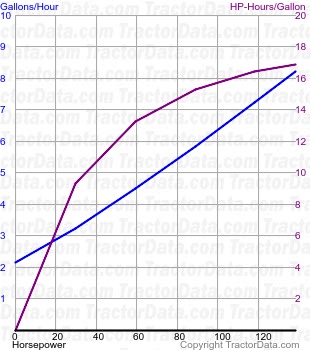

MT525E fuel use from test 1068
OCED Tractor Test 2988
Diesel TechStar CVT 4WD
July 2016 - August 2016,
Link: OCED Tractor Test 2988 file
PTO performance
Max power148.3 hp
110.6 kW
Fuel use8.5 gal/hour
32.2 l/hour
Power at rated engine speed138.1 hp
103.0 kW
Fuel use8.2 gal/hour
31.0 l/hour
Power at rated PTO speed145.5 hp
108.5 kW
Fuel use8.1 gal/hour
30.7 l/hour
Drawbar performance
Max power113.2 hp
84.4 kW
Fuel use8.6 gal/hour
32.6 l/hour
Pull at 9KPH
Max pull15130 lbs
6862 kg
Pull at 2.8KPH
