John Deere 6145R

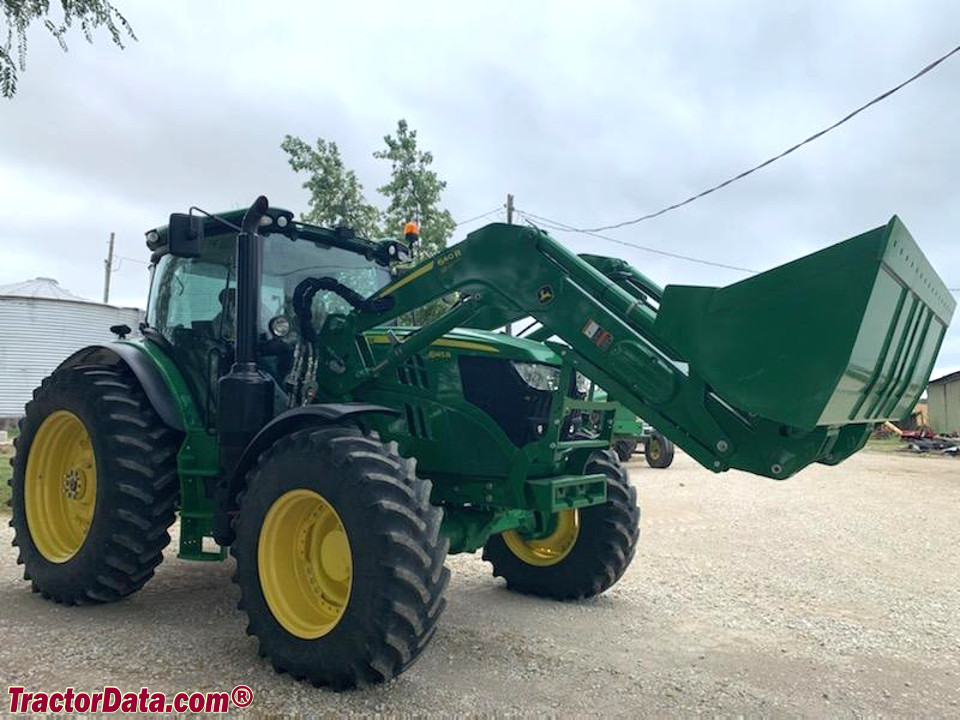

John Deere 6145R tractor photo
2015 - 2021
6R Series
Row-Crop tractor
Series map:
6145R
6155R
145.0hp
155.0hp
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Original price was $169,219 in 2020
John Deere 6145R Engine
John Deere 6.8L 6-cyl diesel
Fuel tank71.3 gal
269.9 L
Exhaust fluid (DEF)4.2 gal
15.9 L
Engine details ...
John Deere 6145R Transmissions
16-speed partial power shift
20-speed partial power shift
24-speed eight-speed power shift
infinitely variable transmission (IVT)
Transmission details ...
John Deere 6145R Power
Engine (gross)145 hp
108.1 kW
Engine (max)157 hp
117.1 kW
PTO (claimed)111 hp
82.8 kW
Drawbar (tested)107.46 hp
80.1 kW
PTO (tested)134.25 hp
100.1 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockelectrohydraulic front and rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Hydraulics
Typeclosed-center pressure and flow compensated
Pressure2900 psi
200.0 bar
Valves2 to 4
Pump flow30.1 gpm
113.9 lpm
SCV flow26.4 gpm
99.9 lpm
Tractor hitch
Rear TypeIII/IIIN
Controlelectronic lower link draft sensing
Rear lift9193 lbs
4169 kg
DrawbarCat. 2
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/1000 (1.375)
 540/540E/1000 OptOptional
Dimensions & Tires
2WD Wheelbase117.5 inches
298 cm
4WD Wheelbase108.9 inches
276 cm
Weight17028 lbs
7723 kg
Front tire11.00-20
2WD Rear tire480/80R46
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps200
 240 OptOptional
Charging volts14
Batteries2
Battery CCA600
Battery volts12
References
6145R references literature
Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL218252) published in 2016
Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL225966) published in 2021
