John Deere 2032R

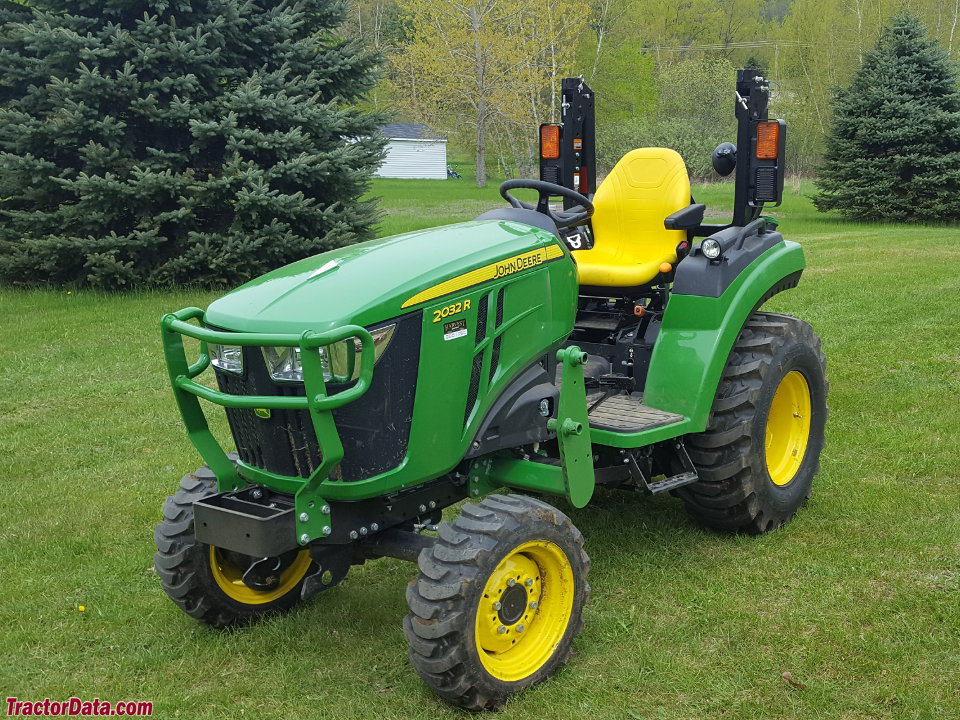

John Deere 2032R tractor photo
2013 - 2025
Model year
2R Series
Compact Utility tractor
Series map:
2025R
2032R
2038R
23.9hp
30.6hp
37.3hp
Production
ManufacturerJohn Deere
Compact Utility tractor
Built in Augusta, Georgia, USA
Original price was $22,096 in 2017
John Deere 2032R Engine
Yanmar 1.6L 3-cyl diesel
Fuel tank8.5 gal
32.2 L
Engine details ...
John Deere 2032R Power
Engine (gross)30.6 hp
22.8 kW
PTO (claimed)24.2 hp
18.0 kW
Mechanical
Final drivesspur gear
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS.
Hydraulics
Typeopen center
Pressure2500 psi
172.4 bar
Valves0 to 3
Pump flow5.3 gpm
20.1 lpm
Total flow9.3 gpm
35.2 lpm
Steering flow4 gpm
15.1 lpm
Tractor hitch
Rear TypeI
Controlposition control
Rear lift (at 24"/610mm)1356 lbs
615 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Mid PTO Type2000
Dimensions & Tires
Wheelbase67.9 inches
172 cm
Weight2436 to 2879 pounds
Front tire7.00-12
Rear tire12.4-16
Full dimensions and tires ...
John Deere 2032R attachments
60" mid-mount mower deck
72" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps85
Charging volts12
Battery CCA500
Battery volts12
References
2032R references literature
2 Series published in 2022, by John Deere
