Branson 5220CH
|
|
| Production | |
| Manufacturer | Branson (a part of Kukje) |
| Compact Utility tractor | |
| Built in South Korea | |
| Branson 5220CH Engine | |
| Kukje 2.3L 4-cyl diesel | |
| Fuel tank | 9.3 gal 35.2 L |
 Engine details ... | |
| Branson 5220CH Transmission | |
| hydrostatic | |
 Transmission details ... |
| Branson 5220CH Power | |
| Engine | 55 hp 41.0 kW |
| PTO (claimed) | 47.5 hp 35.4 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Cab standard with air-conditioning. |
| Photos | |
| No photos of the Branson 5220CH are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Pump flow | 10.4 gpm 39.4 lpm |
| Steering flow | 5 gpm 18.9 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift | 3306 lbs 1499 kg |
| Rear Arms | telescopic lower links |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/540E |
| Dimensions & Tires | |
| Wheelbase | 70.9 inches 180 cm |
| Weight | 4442 lbs 2014 kg |
| Front tire | 7x16 |
| Rear tire | 12.4x24 |
 Full dimensions and tires ... | |
| Branson 5220CH attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 70 |
| Battery volts | 12 |
| References | |
 | |

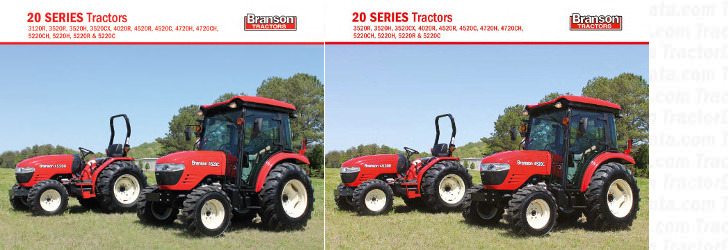

| 20 Series Tractors published in 2015, by Branson | |
| 20 Series Tractors published in 2018, by Branson |
