Minneapolis-Moline M-602 Standard


Minneapolis-Moline M-602 Standard tractor photo
1963 - 1964
Standard-tread tractor
Production
ManufacturerMinneapolis-Moline
Standard-tread tractor
Built in Minneapolis, Minnesota, USA
Variants
M-602Utricycle
M-602Ewide-front
M-602Nsingle front
M-602Sstandard
M-6044WD
Minneapolis-Moline M-602 Standard Engines
Minneapolis-Moline 5.5L 4-cyl gasoline
Minneapolis-Moline 5.5L 4-cyl diesel
Minneapolis-Moline 5.5L 4-cyl LP gas
Gas Fuel tank22.5 gal
85.2 L
Diesel Fuel tank22.5 gal
85.2 L
LP-gas Fuel tank31 gal
117.3 L
Engine details ...
Minneapolis-Moline M-602 Standard Power
Diesel Drawbar (claimed)51 hp
38.0 kW
Gas Drawbar (claimed)52 hp
38.8 kW
LP-gas Drawbar (claimed)54 hp
40.3 kW
Diesel PTO (claimed)64 hp
47.7 kW
Gas PTO (claimed)65 hp
48.5 kW
LP-gas PTO (claimed)66 hp
49.2 kW
Mechanical
Two-wheel drive
Power steering
Open operator station.
Photos
No photos of the Minneapolis-Moline M-602 Standard are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Dimensions & Tires
Wheelbase90 inches
228 cm
Weight6400 to 6600 pounds
Front tire7.50-16
Rear tire18.4-34
Full dimensions and tires ...
M-602 Standard Serial Numbers
Location:Right side of tractor frame, near brake pedals.
196326600001 (gas)
196426601276 (gas)
Final26602957 (gas)
196226700001 (diesel)
196326700743 (diesel)
Final26701772 (diesel)

FAQ: How to read a serial number table.
References

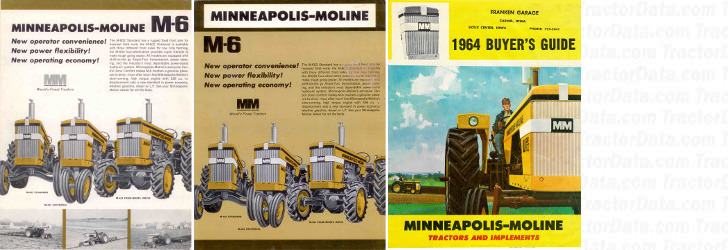

M-602 Standard references literature
M6 published in 1963, by Minneapolis-Moline
M6 published in 1964, by Minneapolis-Moline
Buyer's Guide published in 1964, by Minneapolis-Moline
