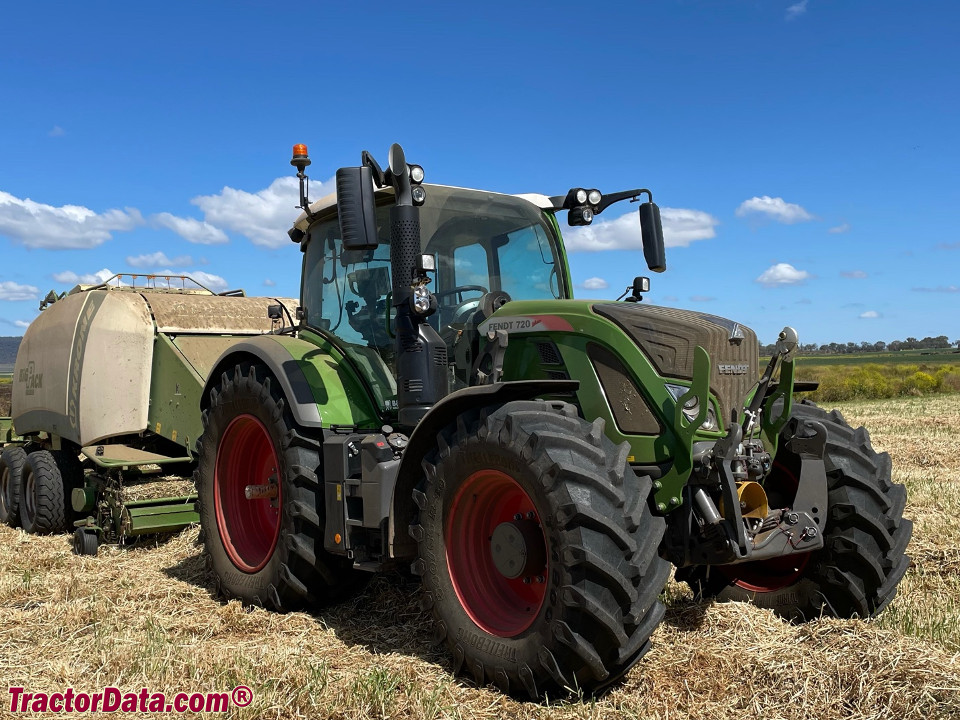

Fendt 720 Vario
|
|
| Production | |
| Manufacturer | Fendt (a part of AGCO) |
| Row-Crop tractor | |
| Fendt 720 Vario Engine | |
| Deutz 6.1L 6-cyl | |
| Fuel tank | 105.7 gal 400.1 L |
| Exhaust fluid (DEF) | 10 gal 37.9 L |
 Engine details ... | |
| Fendt 720 Vario Transmission | |
| continuously-variable transmission (CVT) | |
 Transmission details ... |
| Fendt 720 Vario Power | |
| Engine (gross) | 201 hp 149.9 kW |
| Engine (net) | 185 hp 138.0 kW |
| Engine (max) | 208 hp 155.1 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | planetary |
| Power steering | |
| Wet disc brakes | |
| VisioPlus cab standard with air-conditioning and pneumatic suspension. Variotronic; VarioGuide optional | |
| Photos | |
 | |
 Fendt 720 Vario photos... | |
| Hydraulics | |
| Type | load sensing |
| Pressure | 2901 psi 200.0 bar |
| Rear valves | 2 to 5 |
| Front valves | 0 to 2 |
| Pump flow | 28.8 gpm 109.0 lpm |
| 40.2 gpm*Standard on Profi and ProfiPlus. 152.2 lpm | |
| 51 gpm*Optional on Profi and ProfiPlus. 193.0 lpm | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/540E/1000/1000E |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| Wheelbase | 109.6 inches 278 cm |
| Weight | 17593 lbs 7980 kg |
| Front tire | 540/65R30 |
| Rear tire | 650/65R42 |
 Full dimensions and tires ... | |
| Fendt 720 Vario attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Charging system | alternator |
| Charging amps | 200 |
| Charging volts | 14 |
| Battery volts | 12 |
| Battery AH | 180 |
| References | |
 | |
| 700 Vario published in 2015, by Fendt |
