New Holland TS115 Transmission


New Holland TS115 tractor photo
1998 - 2000
TS Series
Series map:
TS110
TS115
110.0hp
100.0hp
Transmission options
12-speed
24-speed
16-speed
Transmission
TransmissionSynchro Command
Gears12 forward and reverse
Oil capacity60 qts
56.8 L
Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.
Speeds
16.9-38 rear tires.

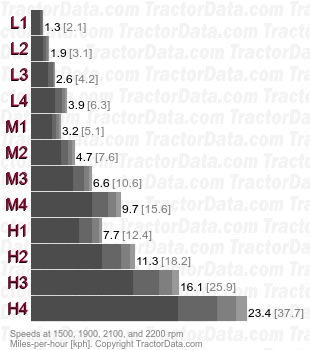

TS115 Synchro Command  speeds
Transmission
TransmissionDual Command
Gears24 forward and reverse
Oil capacity60 qts
56.8 L
Same as Synchro Command, with an additional underspeed powershift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse.
Speeds
16.9-38 rear tires.

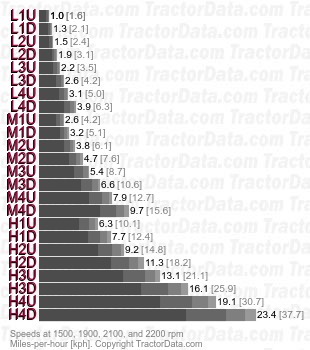

TS115 Dual Command  speeds
Transmission
TransmissionElectroShift
Gears16 forward and reverse
Oil capacity64 qts
60.6 L
Transmission
TransmissionElectroShift - creeper
Gears24 forward and reverse
Additional range of creeper gears can be selected using the clutch with the range in low. Creeper engaged by a toggle switch.
