Tractors > New Holland > TS115

New Holland TS115 Engine



New Holland TS115 tractor photo
1998 - 2000
TS Series
Series map:
TS110
TS115
110.0hp
100.0hp
Engine Detail
New Holland
diesel
6-cylinder
liquid-cooled
Displacement456 ci
7.5 L
Bore/Stroke4.40x5.00 inches
112 x 127 mm
Power (net)100 hp
74.6 kW
Compression17.5:1
Rated RPM2070
Firing order1-5-3-6-2-4
Coolant capacity22.8 qts
21.6 L
Intake valve clearance0.014-0.018 inches (cold)
0.356 mm
Exhaust valve clearance0.017-0.021 inches (cold)
0.432 mm
Engine Oil

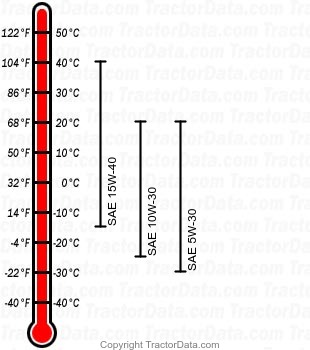

TS115 diesel engine oil chart
Oil capacity22 qts
20.8 L
