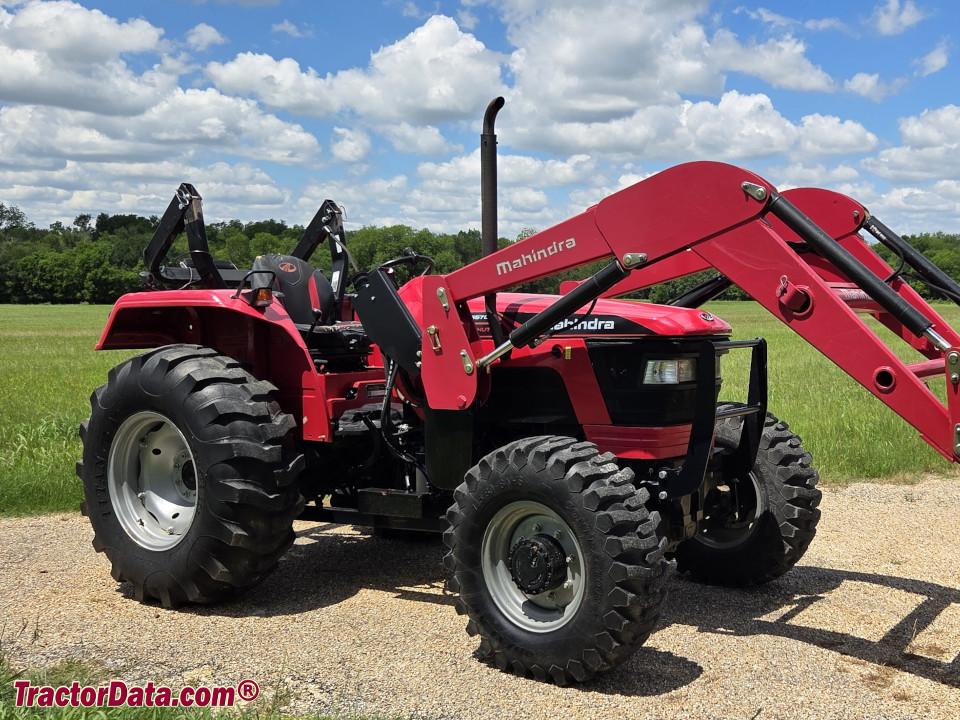

Mahindra 5570
| | 2015 - |
| 5500 Series | | Utility tractor |
|
Series map:
5555
5570
55.0hp
70.0hp
| Production |
| Manufacturer | Mahindra
|
| Utility tractor |
| Original price | $26.875 (2016 2WD )
|
| $33,000 (2016 4WD )
|
| Mahindra 5570 Power |
| Engine | 70 hp
52.2 kW
|
| PTO (claimed) | 61 hp
45.5 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Wet disc brakes |
| Two-post foldable ROPS. |
| Photos |
| No photos of the Mahindra 5570 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | open center
|
| Rear valves | 2
|
| Pump flow | 11.2 gpm
42.4 lpm
|
| Steering flow | 4.6 gpm
17.4 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position and draftcontrol
|
| Rear lift | 3968 lbs
1799 kg
|
| Rear Arms | telescopic stabilizers
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2059
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 55
|
| Charging volts | 12
|
| Battery volts | 12
|
| Battery AH | 96
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on May 26, 2016 |
