| | 1976 - 1982 |
|
| 2040 Series | | Utility tractor |
|
Series map:
2240
2440
2640
55.6hp*
67.4hp*
77.8hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed collar shift |
| 16-speed two-speed power shift |
| 8-speed power shuttle |
| Transmission |
| Type | collar shift
|
| Gears | 8 forward and 4 reverse
|
| Four gears (1-4) in two ranges (I and II) plus reverse (R) range. |

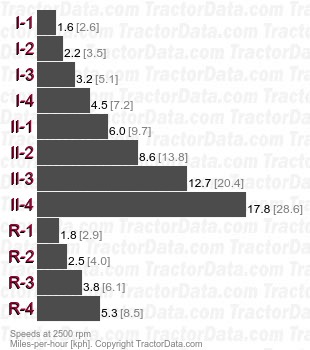

| Speeds |
| With 16.9-28 rear tires. |
|
| Transmission |
| Transmission | Hi-Lo
|
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | dry disc
|
| Four gears (1-4) in two ranges (I/II), plus reverse range (R) with two-speed dash-mount power shift. |

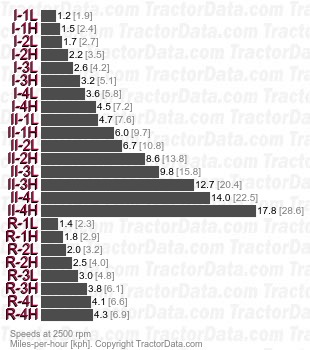

| Speeds |
|
| Transmission |
| Transmission | Direction Reverser
|
| Type | power shuttle
|
| Gears | 8 forward and reverse
|
| Four gears (1-4) in two ranges (I and II) with a left-hand hydraulic shuttle lever. |

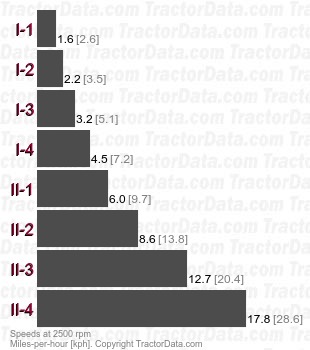

| Speeds |
|
