| | 1977 - 1984 |
| 4040 Series | | Row-Crop tractor |
|
Series map:
4040
4040S
90.0kw
85.8kw
| Transmission options |
| 16-speed partial power shift |
| 8-speed partially synchronized |
| 13-speed creeper |
| Transmission |
| Transmission | Quad-Range
|
| Type | partial power shift
|
| Gears | 16 forward and 6 reverse
|
| Clutch | hydraulic wet disc
|

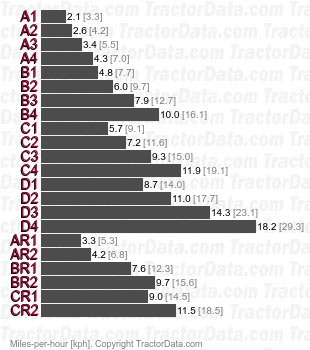

| Four gears (1-4) in four ranges (A-D). Power shift between pairs 1-2 and 3-4 in each range, with synchronized shift between 2-3. Two reverses in ranges A-C. Tractor must be stopped, and clutch used, to shift ranges. Power shift is provided hy a hydraulically-controlled planetary that provides an under-drive to each gear. |
| Speeds |
| With 18.4-38 rear tires. |
|
| Transmission |
| Transmission | Syncro-Range
|
| Type | partially synchronized
|
| Gears | 8 forward and 2 reverse
|
| Clutch | hydraulic wet disc
|

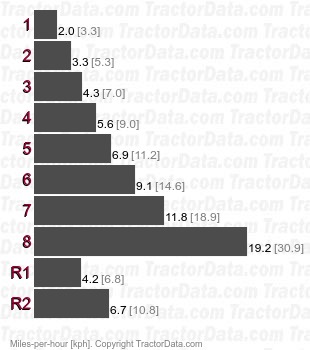

| Four shift stations with two forward gears each. Reverse gear in stations one and two. Shifts between gears within a station are synchronized (clutch must be used). Tractor must be stopped, and clutch used, to select shift stations. |
| Speeds |
| With 18.4-38 rear tires. |
|
| Transmission |
| Transmission | Syncro-Range Creeper
|
| Type | creeper
|
| Gears | 13 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|

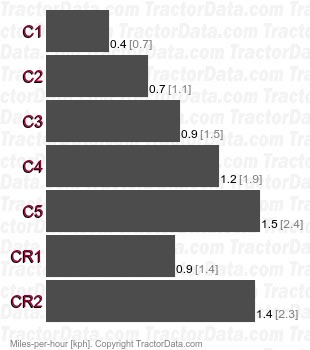

| Adds creeper to gears 1-5 of the Syncro-Range transmission. Creeper engaged by clutching and moving creeper control lever. |
| Speeds |
| With 18.4-38 rear tires. |
|
