John Deere 6155M
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Mannheim, Baden-Württemberg, Germany | |
| John Deere 6155M Engine | |
| John Deere 6.8L 6-cyl diesel | |
| Fuel tank | 71 gal 268.7 L |
| Exhaust fluid (DEF) | 4 gal 15.1 L |
 Engine details ... | |
| John Deere 6155M Transmissions | |
| 16-speed four-speed power shift | |
| 20-speed four-speed power shift | |
 Transmission details ... |
| John Deere 6155M Power | |
| Engine (gross) | 155 hp 115.6 kW |
| Engine (max) | 164 hp 122.3 kW |
| PTO (claimed) | 123 hp 91.7 kW |
| Drawbar (tested) | 119.5 hp 89.1 kW |
| PTO (tested) | 146.7 hp 109.4 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | electro-hydraulic front and rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard with air-conditoning. Two-post folding ROPS available. | |

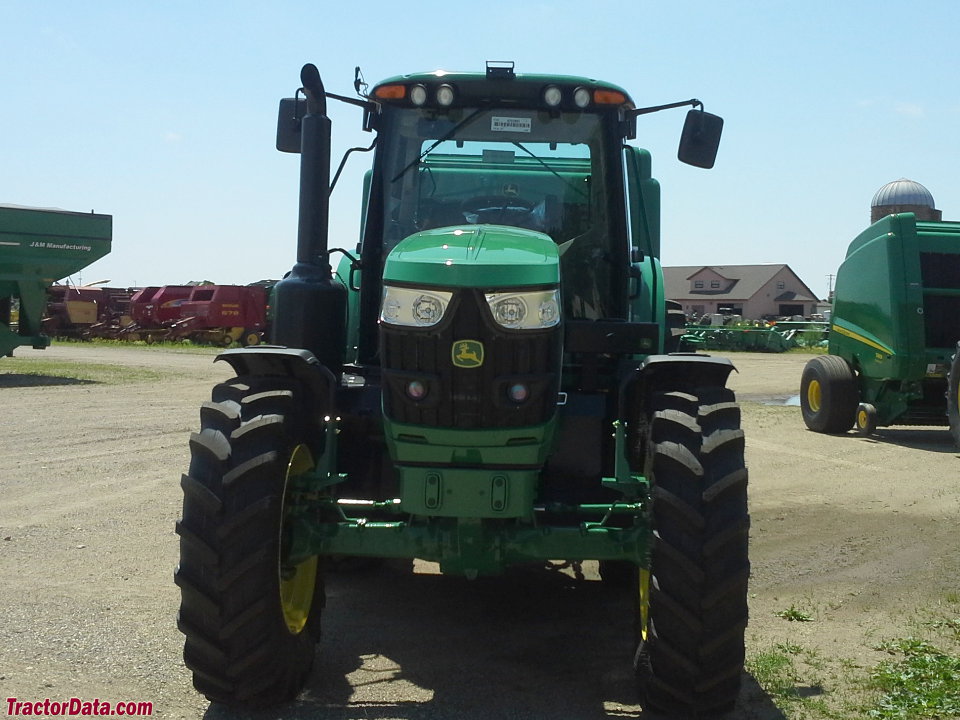

| Photos | |
 | |
 John Deere 6155M photos... | |
| Hydraulics | |
| Type | closed-center pressure-and-flow compensated |
| Pressure | 2900 psi 200.0 bar |
| Rear valves | 3 OptOptional |
| Mid valves | 3 OptOptional |
| Pump flow | 30 gpm 113.6 lpm |
| SCV flow | 26.4 gpm 99.9 lpm |
| Tractor hitch | |
| Rear Type | IIIN/II |
| Control | electronic lower-link draft sensing |
| Rear lift | 8198 lbs 3718 kg |
| 9193 lbsOptOptional 4169 kg | |
| Drawbar | Cat. 2 |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540/1000 (1.375) |
| 540 | |
| Engine RPM | 540@1932 |
| 1000@1932 | |
| Dimensions & Tires | |
| Wheelbase | 108.9 inches 276 cm |
| Weight | 13073 lbs 5929 kg |
| Front tire | 10.00-16 |
| 2WD Rear tire | 460/85R38 |
 Full dimensions and tires ... | |
| John Deere 6155M attachments | |
| front-end loader | |
 Attachment details ... |

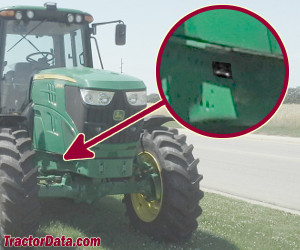

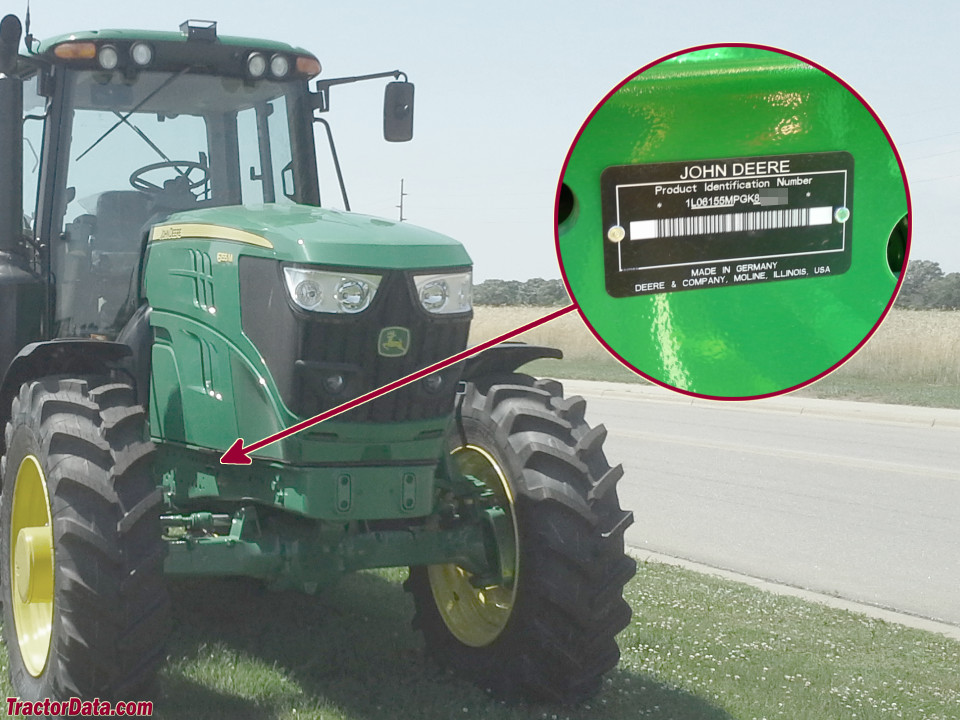

| 6155M Serial Number Location | |
 | |
| Serial number plate on the right side of the tractor frame, above and to the rear of the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| 200 OptOptional | |
| Charging volts | 14 |
| Battery volts | 12 |
