John Deere 6120M Transmission


John Deere 6120M tractor photo
2015 - 2025
Model year
6M Series
Utility tractor
Series map:
6110M
6120M
6130M
110.0hp
120.0hp
130.0hp
Transmission options
12-speed
16-speed four-speed power shift
24-speed four-speed power shift
Transmission
TransmissionSyncroPlus
Gears12 forward and 4 reverse
Transmission
TransmissionPowrQuad
Typefour-speed power shift
Gears16 forward and reverse
Clutchwet disc
Four power-shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle lever. Optional PowrQuad PLUS with push-button gear shift and push-button clutch.
Speeds
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.

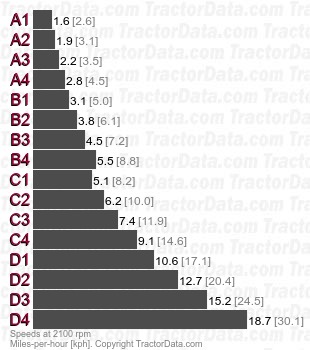

6120M PowrQuad four-speed power shift speeds
Transmission
TransmissionPowrQuad
Typefour-speed power shift
Gears24 forward and reverse
Clutchwet disc
Four power-shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle lever. Optional PowrQuad PLUS with push-button gear shift and push-button clutch.
Speeds
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.
6120M PowrQuad four-speed power shift speeds
Transmission
TransmissionAutoQuad PLUS
Typefour-speed power shift
Gears24 forward and reverse
Clutchwet disc
Four push-button gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle lever. AutoShift mode enables programmable automatic gear shifting.
Speeds
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.
6120M AutoQuad PLUS four-speed power shift speeds
