John Deere 6120M Tests


John Deere 6120M tractor photo
2015 - 2025
Model year
6M Series
Utility tractor
Series map:
6110M
6120M
6130M
110.0hp
120.0hp
130.0hp
OCED Tractor Test 3059

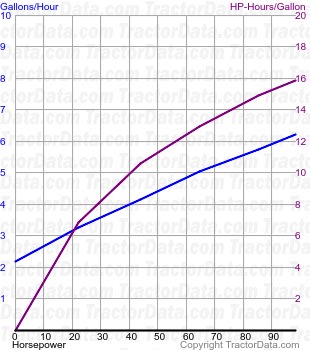

6120M fuel use from test 1109
OCED Tractor Test 3059
Diesel PowerQuad Plus 4WD
March 2017 - April 2017,
Link: OCED Tractor Test 3059 file
PTO performance
Max power105.2 hp
78.4 kW
Fuel use6.0 gal/hour
22.7 l/hour
Power at rated engine speed98.2 hp
73.2 kW
Fuel use6.2 gal/hour
23.5 l/hour
Power at rated PTO speed103.0 hp
76.8 kW
Fuel use6.2 gal/hour
23.5 l/hour
Drawbar performance
Max power91.5 hp
68.2 kW
Fuel use6.3 gal/hour
23.8 l/hour
Max pull12855 lbs
5831 kg
