John Deere 6110M
| | 2015 - 2025 |
|
| 6M Series | | Utility tractor |
|
Series map:
6110M
6120M
110.0hp
120.0hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| John Deere 6110M Power |
| Engine (gross) | 110 hp
82.0 kW
|
| Engine (max) | 116 hp
86.5 kW
|
| PTO (claimed) | 86 hp
64.1 kW
|
| Drawbar (tested) | 81.9 hp
61.1 kW
|
| PTO (tested) | 95.3 hp
71.1 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | electro-hydraulic front and rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Cab standard with air-conditoning. Two-post folding ROPS available. |
| Hydraulics |
| Type | open center
|
| | closed-center pressure-and-flow compensated load sensing OptOptional
|
| Pressure | 2900 psi
200.0 bar
|
| Rear valves | 3 OptOptional
|
| Mid valves | 3 OptOptional
|
| Pump flow | 21.1 gpm
79.9 lpm
|
| | 30 gpm*Pressure-flow compensated option.
113.6 lpm
|
| SCV flow | 21.1 gpm
79.9 lpm
|
| Tractor hitch |
| Rear Type | IIIN/II
|
| Control | electronic lower-link draft sensing
|
| Rear lift | 5582 lbs
2531 kg
|
| | 7431 lbsOptOptional
3370 kg
|
| Drawbar | Cat. 2
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540/1000 (1.375)
|
| | 540
|
| Engine RPM | 540@1932
|
| | 1000@1932
|
| 6110M Serial Number Location |
 |

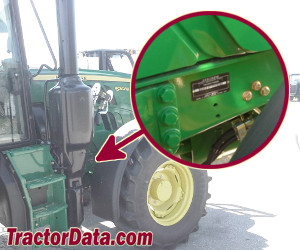

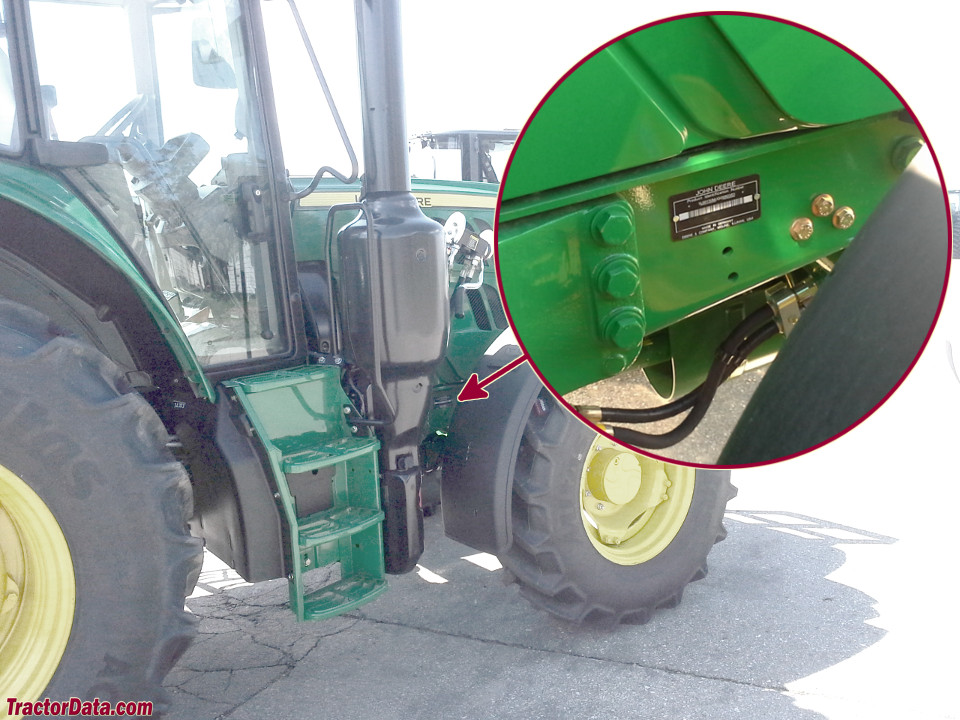

| Serial number plate on the right side of the tractor frame, above and to the rear of the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 120
|
| | 200 *Optional with cab.
|
| Charging volts | 14
|
| Battery volts | 12
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 27, 2021 |
