CaseIH Farmall 30C
|
|
| Production | |
| Manufacturer | CaseIH |
| Compact Utility tractor | |
| Original price | $23,986 (2016 shuttle ) |
| $25,831 (2016 hydro ) | |
| CaseIH Farmall 30C Engine | |
| Shibaura 1.5L 3-cyl diesel | |
| Fuel tank | 10.5 gal 39.7 L |
 Engine details ... | |
| CaseIH Farmall 30C Transmissions | |
| 12-speed synchronized shuttle | |
| hydrostatic | |
 Transmission details ... |
| CaseIH Farmall 30C Power | |
| Engine | 32.2 hp 24.0 kW |
| Shuttle PTO (claimed) | 26 hp 19.4 kW |
| Hydro PTO (claimed) | 24.7 hp 18.4 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. Cab optional. |
| Photos | |
 | |
 CaseIH Farmall 30C photos... | |
| Hydraulics | |
| Type | open center |
| Valves | 1 or 2 |
| Pump flow | 7.3 gpm 27.6 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1808 lbs 820 kg |
| Rear lift (at 24"/610mm) | 1433 lbs 650 kg |
| Rear Arms | telescopic link ends |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 66 inches 167 cm |
| Weight | 3218 lbs 1459 kg |
| Front tire | 7x14 |
| Rear tire | 11.2x24 |
 Full dimensions and tires ... | |
| CaseIH Farmall 30C attachments | |

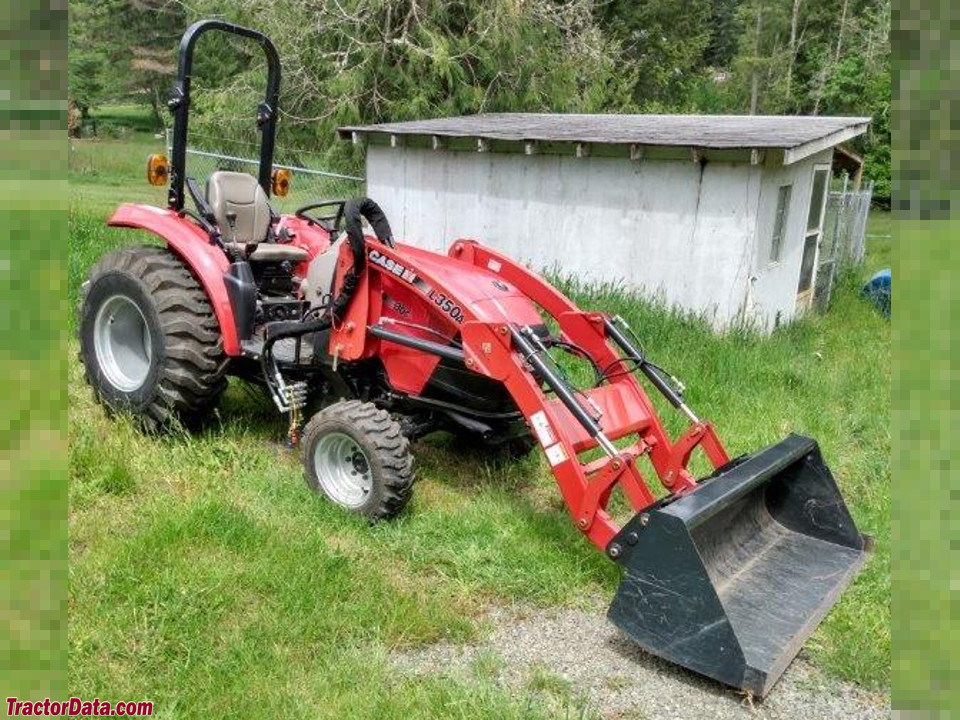

| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 85 |
| Battery volts | 12 |
| References | |
 | |
| Farmall C Series Compact Tractor Specifications published in 2014, by CaseIH |
