John Deere 2020


John Deere 2020 tractor photo
1967 - 1972
Row-Crop tractor
Series map:
2020
2120
47.7kw
50.7kw
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 2020 Engine
John Deere 3.3L 4-cyl diesel
Fuel tank19.6 gal
74.2 L
Engine details ...
John Deere 2020 Transmissions
8-speed gear
16-speed two-speed power shift
Transmission details ...
John Deere 2020 Power
Engine64 hp
47.7 kW
Mechanical
Two-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Steeringmanual
Steeringpower OptOptional
Hydraulic wet disc brakes
Open operator station.
Hydraulics
Typeclosed center
Pressure2200 psi
151.7 bar
Pump flow10.7 gpm
40.5 lpm
Tractor hitch
Rear TypeII/I
Controlposition and depth control
Rear lift2760 lbs
1251 kg
Power Take-off (PTO)
Rear PTOlive
Rear PTO Type540 (1.375)
Engine RPM540@2100
Dimensions & Tires
Wheelbase85.8 inches
217 cm
Weight4750 lbs
2154 kg
Front tire7.50x16
Rear tire12x36
Full dimensions and tires ...
2020 Serial Number Location

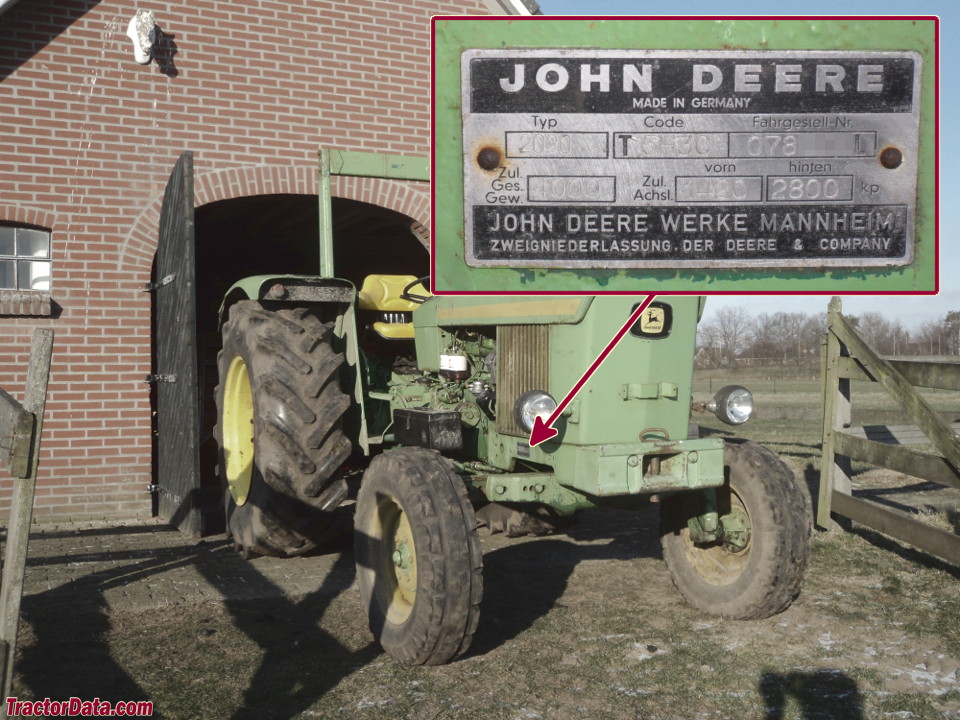

John Deere 2020 serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Charging systemgenerator
Batteries2
Battery AH60
References
2020 references literature
New 2020 and 2120 Tractors published in 1969, by John Deere
New 2020 64 hp. tractor published in 1967, by John Deere
