SAME Centauro 70 Transmission
|
|
| Transmission options | |
| 12-speed synchromesh | |
| 16-speed creeper |
| Transmission | |
| Type | synchromesh |
| Gears | 12 forward and reverse |
| Clutch | dry disc |
| Four gears (1-4) in three ranges with shuttle shift. | |

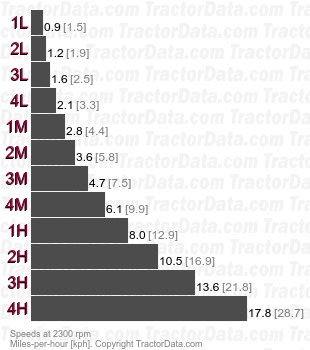

| Speeds | |
| 30 kph transmission with 16.9-30 rear tires. Reverse speeds are 20% slower than forward. | |
|
| Transmission | |
| Type | creeper |
| Gears | 16 forward and reverse |
| Clutch | dry disc |
| Optional creeper adds additional low range to base transmission. | |

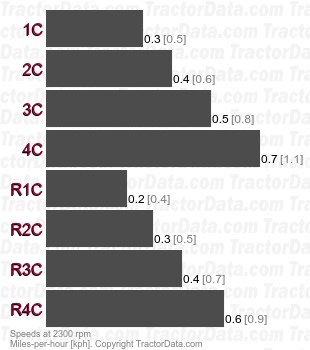

| Speeds | |
| 30 kph transmission with 16.9-30 rear tires. | |
|
