Kioti CK3510
| | 2015 - |
| CK10 Series | | Compact Utility tractor |
|
| Production |
| Manufacturer | Kioti (a part of Daedong)
|
| Compact Utility tractor |
| Variants |
| CK3510SE HC | cab hydro
|
| Kioti CK3510 Power |
| Engine (gross) | 34.9 hp
26.0 kW
|
| Gear PTO (claimed) | 30.8 hp
23.0 kW
|
| Hydro PTO (claimed) | 29.7 hp
22.1 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Wet disc brakes |
| Two-post folding ROPS. Cab with air-conditioning optional (CK3510SE HC model). |
| Hydraulics |
| Type | open center
|
| Valves | 2 OptOptional
|
| Total flow | 11.7 gpm
44.3 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at 24"/610mm) | 1631 lbs
739 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Clutch | dry disc
|
| Rear PTO Type | 540 (1.375)
|
| Mid PTO | optional
|
| Mid PTO Type | 2000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 28, 2020 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

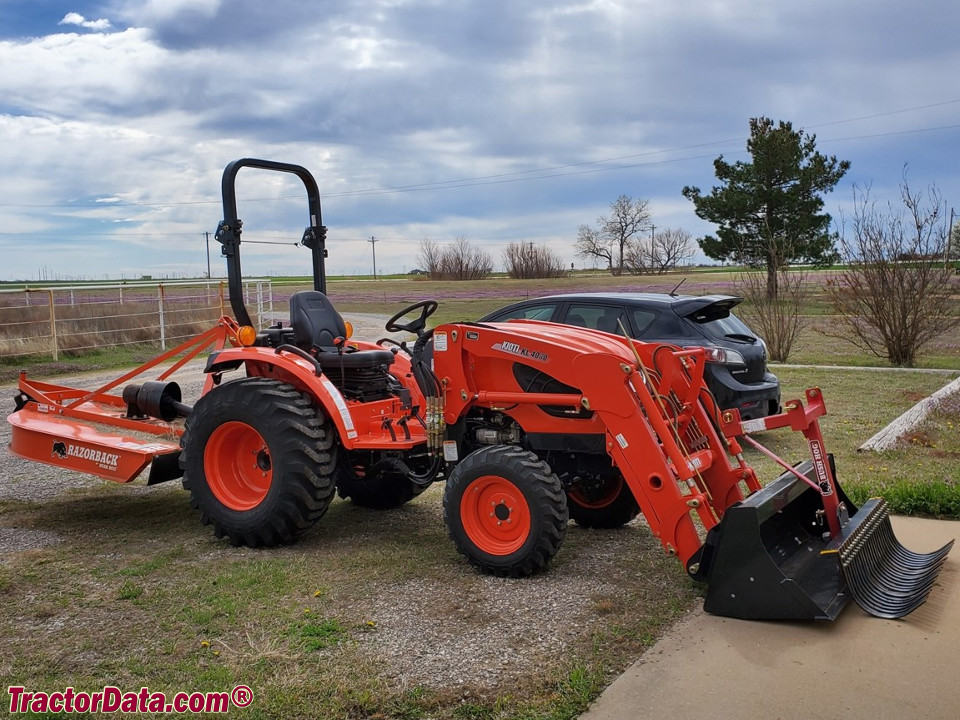

Kioti CK3510 photos...
